HRB 60-100 Hardness Shock Base Valve / foot valve , sintered metal parts

perfect appearance foot valve via continuous furnace reach proper hardness

Specifications:

Description:

Product Name: Shock Absorber base valve, foot valve

Raw Materials MPIF FC-0208

Feature

1. Density from 6.5-6.7 g/cm3

2. Hardness: HRB 60-100

3. Steam treatment: 2H high temp steam holding time, Thickness of Fe3O4: 0.004-0.005mm

4. Full line products for shock absorber, including powder metallurgy piston, rod guide, foot valve, PTFE band for piston, Du bearing for rod guide.

5. PPAP III is submitted accordingly.

Processing: Mixing powder— Forming— Sintering— Sizing— After treatment— Steam treatment— Oil impregnant— Packing— Shipping

Manufacture ability

1. Auto Mechanical Press: 50T, 100T, 140T

2. Hydraulic Press: 100T, 315T, 600T, 800T

3. Six sinter furnaces, including one harden Sinter Furnace

4. Heat treatment: Carbonitriding quenching and high frequency quenching

Test Ability.

1. Carbon sulfur determinator

2. Metallurgic microscope

3. Hydraulic universal material tester

4. Hardness testers

5. Pneumatic measuring instrument

6. Measuring projector

7. Gear testing instrument

8. Electrical profile meter

9. CMM

Applications:

1. Automotive Part

2. Motorcycle Part

3. Pump Parts

4. Locomotive Parts

5. Machinery Parts

6. Tool Parts

Competitive Advantage:

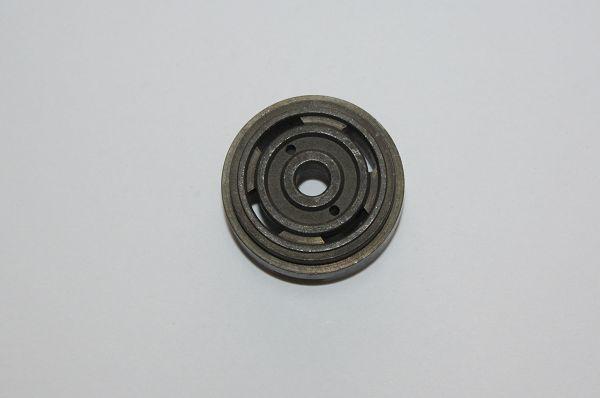

Picture show:
