High quality precision Oilless Bushing all Oiles Bronze Bearing,Oil Free Bushings

Specifications:

SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2 (dx) slide bearing bushing (POM Composite)

FB090 (FB090G) bronze bushing

FB092 bronze bushing

JDB, JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer

FR metal mesh + PTFE Soft strips

JGB Graphite bearings

Description:

DU bushing is a standard item of our company

DU bearing is also called PTFE bushing, SF-1 oilless bearing, PTFE lined bearing, plain dry bushes, DU

bush.

Product Feature

Structure: Bronze Backing + Bronze Sinter + PTFE/PB

1. PTFE/PB mixture 0.01 - 0.03mm, provides an excellent initial transfer film, which effectively coats the

mating surface of the bearing assembly, forming an oxide type solid lubricant film.

2. Sintered bronze powder 0.20 - 0.35mm, provides max. Thermal conductivity away from the bearing

surface, also serves as a reservoir for the PTFE-lead mixture.

3. Bronze backing, gives exceptionally high load carrying capacity, excellent heat dissipation. Have very

good corrosion resistance.

Availability:

Standard cylindrical bush, flanged bushing, thrust washers and strips are available.

Special designs can be made according to your requirement

Lead free bushing is also available

Applications:

DU bearing is widely Lifting equipment, Hydraulics and valves, pneumatic equipment, medical equipment,

textile machinery, agricultural equipment, construction equipment, material handing equipment, packaging

equipment, automotive field, scientific equipment, drying ovens, office equipment, etc.

Widely used in agricultural machine,construction machine, crane, underpan parts,

conveyor,elevator,winch,plane machine, truck, etc.

Competitive Advantage:

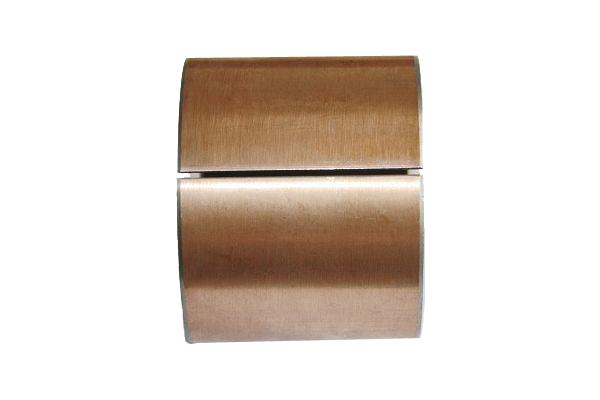

Picture Show
