Automatic transport belt skirting machine produce shock pistons with size consistency

Technical parameters

TEAM: We have a technical team to develop automatic and semi-automatic machines.

DIMENSION: We can get the pistons with PTFE banding on OD and can highly improve work efficiency

and lower the cost. Infrared ray can control the piston's outer dimension and we can assure the

dimension's consistency.

MOULD: We can make the mould by ourselves.

OPERATORS: Only need to put the powder metallurgy products on the table and take out of the finished

pistons from the table.

One person can operate several machines.

To assure the appearance of the products, we will improve to use long conveyer directly to work table

If you are interested in such machines, we can offer the detail information if you need. Our technical

persons can help to set up and debug the machines.

Our technic persons can help to set up and debug the machines.


Output:500-600 pcs pistons/hour

Electricity:380V

Tooling set up:15 minutes

Piston diameter:25mm-46mm

Piston height:12mm-20mm

Machine lead time:2 months

Tooling lead time:3 weeks

Machinery spares:2 weeks

Machinery spare set:available

Pistons in /out:on table

Infrared ray can control the piston's outer dimension and we can assure the dimension's consistency.

MOULD: We can make the mould by ourselves.

OPERATORS: Only need to put the powder matallurgy products on the table and take out of

the finished pistons from the table.

One person can operate several machines.

Competitive advantage:

1.Easily operation

2.Machine can adjust and re-design by customer's demand

3.Have high efficiency

4.Have good uniformity

Application:

All PTFE banding piston with different size rang from 20mm to 45mm

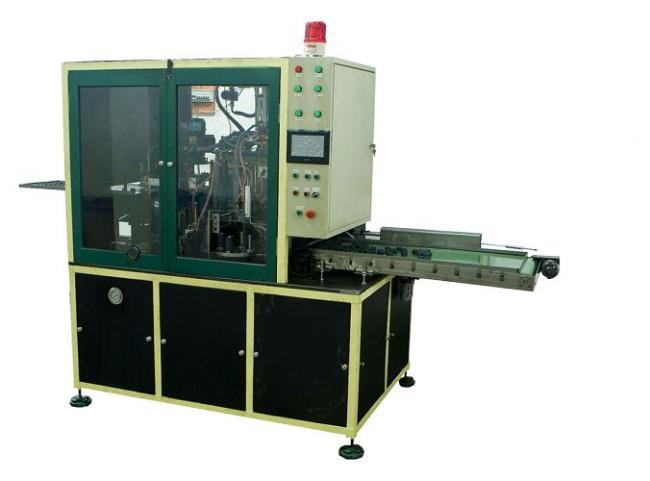

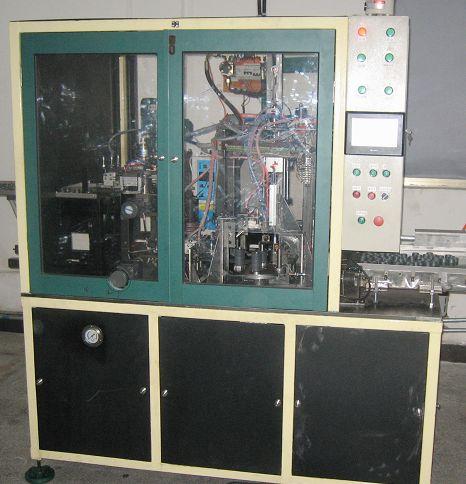

Picture show
