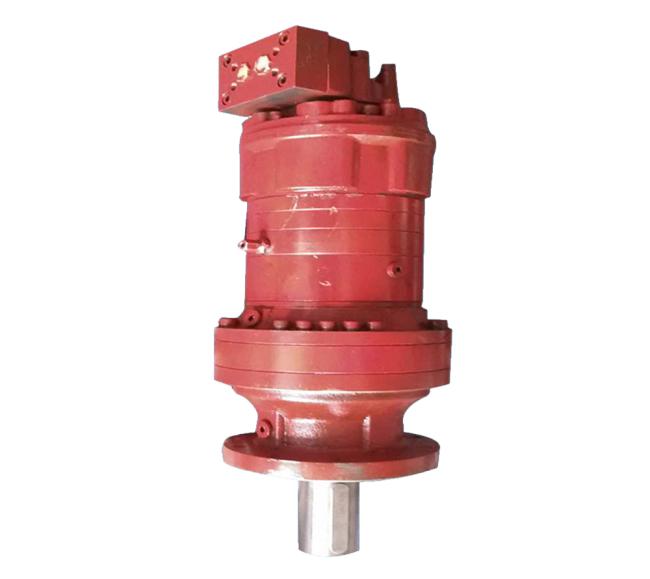

Part Name: large torque and low speed Truck Crane Slewing Gear Rotary Reducer for coal washing
Part Model: DIP series
Especially used in crawler crane
Applications:
Especially suitable for the center and peripheral transmission of the concentrator, coal washing, can also be used in the port crane, construction tower crane.
Specifications:
| Max torque(N.m) | 20000 |
| Reduction ratio(i) | 52.3 |
| Max input speed(rpm) | 3 |
| Max operation pressure(Mpa) | 10 |
| Brake torque(N.m) | -- |
| Min starting pressure(Mpa) | -- |
| Model of hydraulic motor | NIM3-300 |
| Weight(kg) | 370 |
This series of rotary reducer is a series of new products specially designed for coal washing and concentration equipment .It has large torque and low speed, which is especially suitable for concentrator with center and peripheral drive, and can also be used in port crane and construction tower crane. This series reducer features simple installation, convenient oil change, low operating noise, high strength modular structure and long service life.
Detail drawing:
 |
Other drawings:
 |
