8 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
| Model No. | ZCFTB-08H-1(7232015) | ![]() |
|---|---|---|
| Color | White, Black | |
| Capacity | 8 core | |
| Protection Level | IP55 | |
| Material | ABS, ABS+PC | |
| Flame Retardant Performance | Non-flame retardant | |
| PLC Splitter Type | Mini PLC Splitter | |
| Dimension (L*W*D, MM) | 249*203*53 | |
| Inner Box Size (MM) | 250*210*65 | |
| Outer Box Size (MM) | 525*445*370 | |
| Weight (KG) | 0.7 | |
| Gross Weight (KG) | 15 | |
| PCS/Carton | 20 |

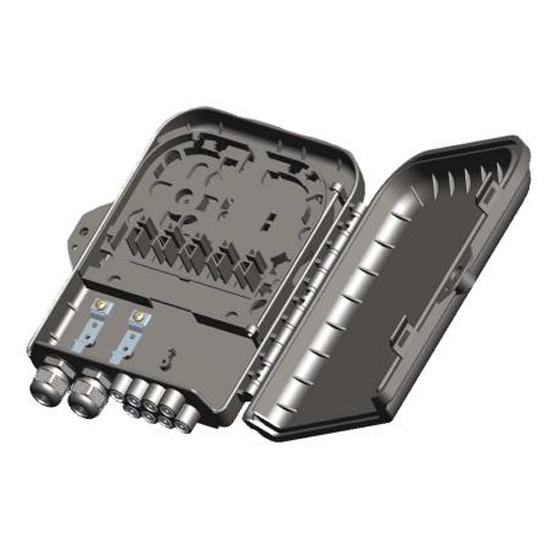

ZION COMMUNICATION Model No. ZCFTB-08H-1 connects drop cable with feeder cable as the termination point in FTTX networks, capable of meeting at least 8 user requirements. Provides suitable space for splicing, splitting, storage and management of fiber optic connections.
- Plastic bag size: 249*203*53mm
- Inner box with single corrugated size: 250*210*65mm
- Carton with double corrugated size: 525*445*370mm (20PCS/Box)
- Weight per carton: 15KG
Avoid rain, sun exposure and squeezing during transportation. Products should be stored in warehouses avoiding moisture, sun, and fire. Storage temperature should be maintained between 25℃ and +40℃.
Note: Special parts that are easily damaged during transportation should be protected carefully.
