16 Core Fiber Optical Terminal Box with IP65 Protection and ABS+PC Material for Secure Fiber Management
Price:
Negotiable
MOQ:
no limit
Delivery Time:
Normally 10 working days
Brand:
Zion communication
Product Description

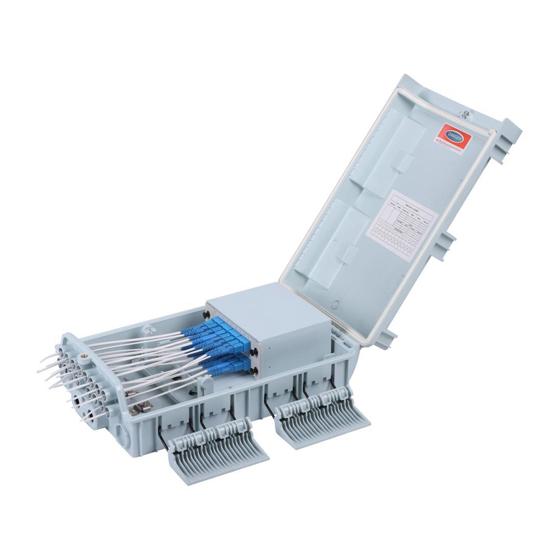

Fiber Optical Terminal Box ZCFTB-16E-2 (7232030)
Product Overview
ZION COMMUNICATION Model ZCFTB-16E-2 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.
Available Configurations: 4/8/12/16/24/48/96 cores
Protection Levels: IP55 to IP68
Materials: ABS, ABS+PC, PP+glassfiber
Splitter Types: Mini/Module PLC Splitter
Protection Levels: IP55 to IP68
Materials: ABS, ABS+PC, PP+glassfiber
Splitter Types: Mini/Module PLC Splitter
Technical Specifications
| Model Number | ZCFTB-16E-2 (7232030) |  |
| Color | White, Black | |
| Capacity | 16 core | |
| Protection Level | IP65 | |
| Material | ABS, ABS+PC | |
| Flame Retardant Performance | Non-flame retardant | |
| PLC Splitter Type | Module Box PLC splitter | |
| Dimensions (L×W×D, mm) | 344×210×103 | |
| Inner Box Size (mm) | 350×215×110 | |
| Outer Box Size (mm) | 445×365×565 | |
| Weight (kg) | 1.8 | |
| Gross Weight (kg) | 19 | |
| Pieces per Carton | 10 |
Product Images
Packaging Information
- Plastic bag size: 344×210×103mm
- Inner box with single corrugated size: 350×215×110mm
- Carton with double corrugated size: 445×365×565mm (10PCS/Box)
- Weight per carton: 19KG
Transportation & Storage Guidelines
- Avoid exposure to rain, direct sunlight, and compression during transportation
- Store products in warehouse conditions avoiding moisture, sunlight, and fire hazards
- Recommended storage temperature: 25℃ to +40℃
- Special components susceptible to damage during transit require careful protection
