SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler
Price:
Negotiable
MOQ:
20pcs
Delivery Time:
Normally 25 days after received the deposit.
Brand:
Zion communication
Product Description

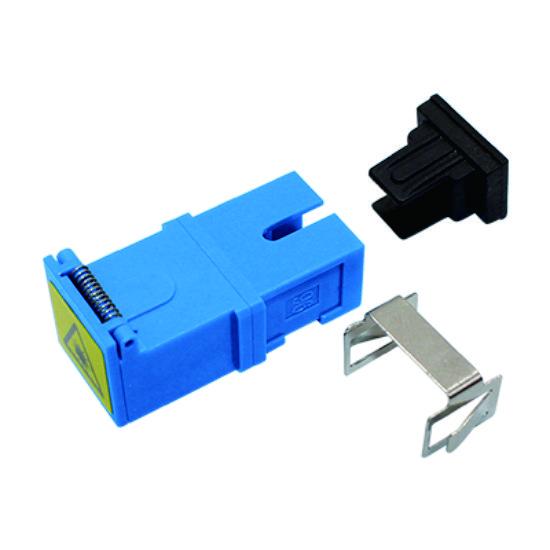

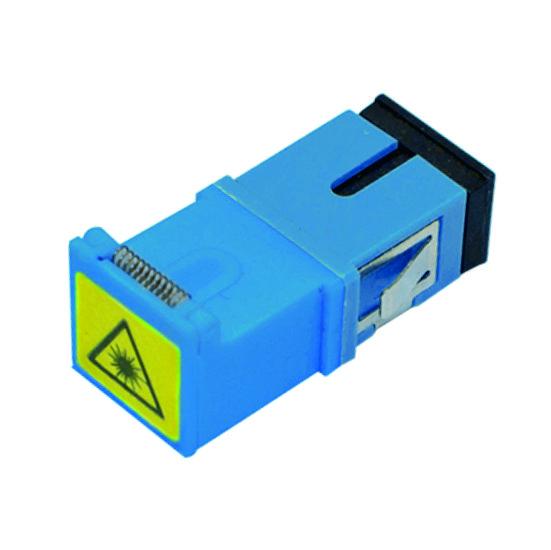

SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
Fiber Optic Adapter
SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER
Product Identification
| Zion Code | Zion Description |
|---|---|
| 7235005 | SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange |
Applications
- Used in LC optical fiber interface to connect the connector of SFP module
- Made by the easy-to-operate modular jack (RJ) latch mechanism (commonly used in routers)
Technical Specifications
| Parameter | FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC |
|---|---|
| SM (OS2) | MM (OM1,2,3,4) |
| Operating Wavelength(nm) | 1310-1550 | 850-1300 |
| Insertion Loss (dB) | ≤ 0.2 |
| Return Loss (dB) | PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30 |
| Repeatability (dB) | ≤ 0.2 |
| Alternating loss (dB) | ≤ 0.2 |
| Durability | The change of 500 interpolation times is less than 0.20dB |
| Number of channels | Single core, Dual core, 4 core |
| Frame material | Metal or Plastic |
| Sleeve material | Ceramic or Metal |
| Operating Temperature (℃) | -40 ~ +85 |
| Storage Temperature (℃) | -40 ~ +85 |
Related Fiber Optic Adapter Products
| Zion Code | Zion Description |
|---|---|
| 7235001 | LC SX Plastic Fiber Optic Adapter/Coupler with Flange |
| 7235002 | LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange |
| 7235003 | LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange |
| 7235004 | SC Plastic Fiber Optic Adapter/Coupler with Legs |
| 7235005 | SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange |
| 7235006 | SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange |
| 7235007 | SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange |
| 7235008 | SC-FC SX Hybrid Fiber Optic Adapter/Coupler |
| 7235009 | SC-FC DX Hybrid Fiber Optic Adapter/Coupler |
| 7235010 | FC-ST SX Hybrid Fiber Optic Adapter/Coupler |
| 7235011 | FC-ST DX Hybrid Fiber Optic Adapter/Coupler |
| 7235012 | SC-LC SX Hybrid Fiber Optic Adapter/Coupler |
| 7235013 | SC-LC DX Hybrid Fiber Optic Adapter/Coupler |
| 7235014 | SC-ST SX Hybrid Fiber Optic Adapter/Coupler |
| 7235015 | SC-ST DX Hybrid Fiber Optic Adapter/Coupler |
| 7235016 | FC SX Big D-Type Fiber Optic Adapter/Coupler |
| 7235017 | FC SX With Rectangle Flange Fiber Optic Adapter/Coupler |
| 7235018 | FC With Rectangle Flange Fiber Optic Adapter/Coupler |
Connector Types and Applications
LC Connector
Used in LC optical fiber interface to connect the connector of SFP module. It is made by the easy-to-operate modular jack (RJ) latch mechanism. (Routers are commonly used)
SC Connector
Used in SC fiber optic interface, it looks very similar to the RJ-45 interface, but the SC interface is flatter, and the obvious difference is the inner contact. If it is 8 thin copper contacts, then it is an RJ-45 interface, if it is a copper column, it is an SC fiber interface.
FC Connector
Used in FC optical fiber interface, the external strengthening method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (most used on the distribution frame)
ST Connector
Used in ST optical fiber interface, commonly used in optical fiber distribution frame, the shell is round, and the fastening method is turnbuckle. (For 10Base-F connection, the connector is usually ST type. Commonly used in optical fiber distribution frame)
OEM/ODM Services
ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.
- Customized Logo
- Printing on Cable
- Label/PE bag/Carton design
- Different Color & Different Lengths Available
Optical Components Portfolio
ADSS Cable Products
All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath, Gel-filled, Self-supporting, Aramid Yarn| KEVLAR
FTTH Drop Cable
FTTH (fiber to the home) networks are installed in many areas covering indoor and outdoor sections and the transition in between.
Fiber Optic Splice Closure
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
Fiber Optic Terminal Box
Fiber Optical Terminal Box 4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
