Product Description
1.5U 9 Way Cabinet PDU With Switch 125V, 15A UL

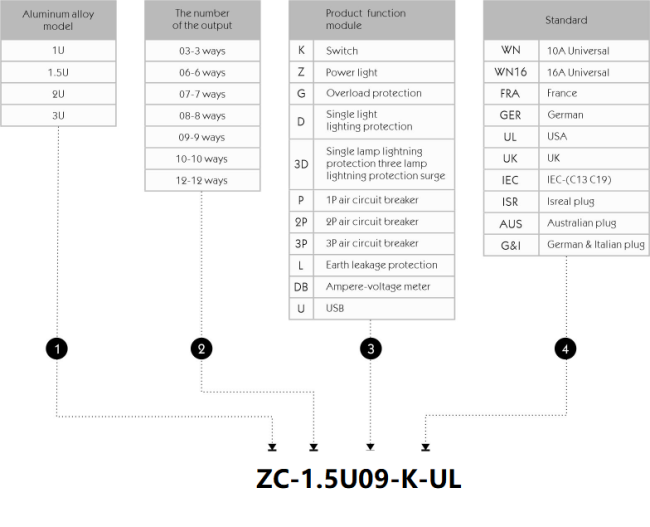

Product Identification
| Zion Code | Zion Description |
|---|---|
| PDU-7245319(ZC-1.5U09-K-UL) | 1.5U 9 way Cabinet PDU with Switch 125V,15A UL |
Applications
- Banking, securities, universities, municipal administration, medical care, electric power and other fields
- Data Center; Enterprise networking

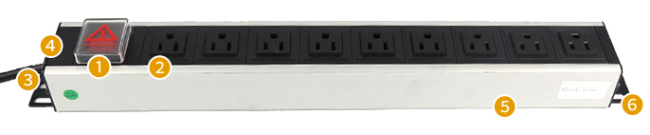

PDU Module Overview
Power Switch
Controls power on/off of the PDU to manage data system operation
Functional Modules
Modular design with global standard compliance. Phosphor bronze components ensure reliable contact, wear-resistance, and 5000+ plug cycles. Fire-retardant PC+ABS materials meet UL94-V0 standards.
Cable Options
Available in 10A 3×1.5mm², 16A 3×2.5mm², 25A 3×4mm², and 32A 3×6mm² configurations
Custom Branding
ODM/OEM logo printing available per customer requirements
Enclosure Profile
High-quality aluminum alloy shell for strength and optimal heat dissipation
Installation Flexibility
Designed for installation in any orientation (360° rotation)
Power Input Options
Left/right-side input, front/rear input, single/double input configurations available
Technical Specifications
Countries Socket Type15A UL
Rated Current15A
Rated Voltage125VAC
Max. Continuous Operating Voltage220VAC
Unit Thickness1.5U
Output Modules9 way
OEM/ODM SupportYES
ColorBlack
Length19 inch
Alternative FiltrationHighly efficient
VendorZion Communication / Hello Signal
Incidental FunctionSwitch
Operating Temperature-40°C to +70°C
MaterialsUninflammable PC module UL94V-0, Aluminum alloy shell
Fire ResistanceUL 94V-0
Packing1pc/plastic bag/inner box, 25pcs/carton
Related PDU Products
| Zion Code | Name Code | Zion Description |
|---|---|---|
| 7245301 | ZC-1U03-3P-WN | 1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal |
| 7245302 | ZC-1U06-K-WN | 1U 6 way Cabinet PDU with Switch 250V,10A Universal |
| 7245303 | ZC-1U06-K-3D-WN | 1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal |
| 7245304 | ZC-1U08-K-G-WN | 1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal |
| 7245305 | ZC-1U06-P-WN | 1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal |
| 7245306 | ZC-1U06-K-D-U-WN | 1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal |
| 7245307 | ZC-1U06-Z-P-WN | 1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal |
| 7245308 | ZC-1U06-L-WN16 | 1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal |
| 7245309 | ZC-1U06-L-Z-WN16 | 1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal |
| 7245310 | ZC-1U08-K-G-WN16 | 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal |
| 7245311 | ZC-1U03-K-WN16 | 1U 3 way Cabinet PDU with Switch 250V,16A Universal |
| 7245312 | ZC-1.5U06-L-WN16 | 1.5U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal |
| 7245313 | ZC-1U12-Z-UK | 1U 12 way Cabinet PDU with Power Light 250V,13A UK |
| 7245314 | ZC-1.5U06-k-G-D-UK | 1.5U 6 way Cabinet PDU with Switch and Overload protection and 3D Light 250V,13A UK |
| 7245315 | ZC-1U06-K-G-UK | 1U 6 way Cabinet PDU with Switch and Overload protection 250V,13A UK |
| 7245316 | ZC-1U08-UK | 1U 8 way Cabinet PDU with 250V,13A UK |
| 7245317 | ZC-1U07-K-G-UK | 1U 7 way Cabinet PDU with Switch and Overload protection 250V,13A UK |
| 7245318 | ZC-1U08-K-G-UL | 1U 8 way Cabinet PDU with Switch and Overload protection 125V,15A UL |
| 7245319 | ZC-1.5U09-K-UL | 1.5U 9 way Cabinet PDU with Switch 125V,15A UL |
| 7245320 | ZC-1.5U10-G-UL | 1.5U 10 way Cabinet PDU with Overload protection 125V,15A UL |
| 7245321 | ZC-1.5U12-K-UL | 1.5U 12 way Cabinet PDU with Switch 125V,15A UL |
| 7245322 | ZC-1U06-K-G-U-UL | 1U 6 way Cabinet PDU with Switch and Overload protection and USB 125V,15A UL |
| 7245323 | ZC-1U10-K-C13 | 1U 10 way Cabinet PDU with Switch IEC 250V,10A C13 |
| 7245324 | ZC-1U08-K-C13 | 1U 8 way Cabinet PDU with Switch IEC 250V,10A C13 |
| 7245325 | ZC-1U06-K-G-FRA | 1U 6 way Cabinet PDU with Switch and Overload protection 250V,16A France |
| 7245326 | ZC-1.5U08-FRA | 1.5U 8 way Cabinet PDU 250V,16A France |
| 7245327 | ZC-1U12-K-G-GER | 1U 12 way Cabinet PDU with Switch and Overload protection 250V,16A German |
| 7245328 | ZC-1U08-K-G-GER | 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A German |
| 7245329 | ZC-1.5U06-K-3D-GER | 1.5U 6 way Cabinet PDU with Switch and 3D Light 250V,16A German |
