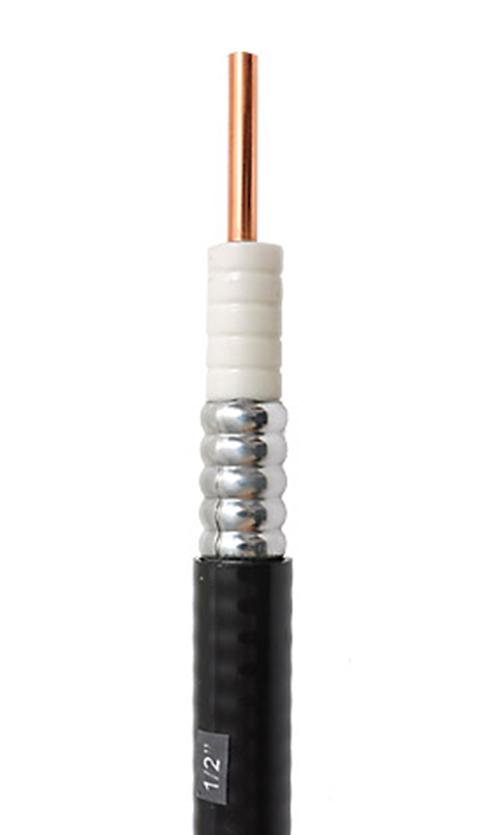

1/2" AL RF Corrugated 50 ohm coaxial cable Annular Corrugated Aluminum Tube coax cable
Price:
Negotiable
MOQ:
1 KM
Delivery Time:
25 working days
Brand:
Zion communication OR OEM
Product Description
| 1/2" AL RF Corrugated 50 ohm coaxial cable NO.7101107 |
||
| Construction Parameters: | ||
| Inner Conductor | 4.80±0.05mm Copper Clad Aluminum Wire | |
| Insulation | 12.00±0.20mm Foamed PE | |
| Outer Conductor | 13.90±0.15mm Annular Corrugated Aluminum Tube | |
| Jacket | 15.70±0.20mm PE, Black | |
| Jacket Thickness | ＞0.80mm | |
| Application | ||
Electrical Characteristics: |
||
| Capacitance | 76 pF/m |  |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.88 | |
| Peak Power Rating | 40 KW | |
| Peak Voltage | 1.8 KV | |
| Insulation Resistantce | >10000 MΩ.km | |
| Insulation Voltage | 6 KV | |
| Inner Conductor DC Resistance | 1.62 Ω/km | |
| Outer Conductor DC Resistance | 3.70 Ω/km | |
| VSWR | ||
| 800MHz-1000MHz | 1.15 | |
| 1700MHz-2500MHz | 1.15 | |
| 2500MHz-3000MHz | 1.2 | |
| Mechanical and Envrionmental Properties: | ||
| Bending Radius (Single Bend) | 80 mm | |
| Bending Radius (Repeated Bend) | 125 mm | |
| Operating Temp Range | -55 to +85 ℃ | |
| Cable Diamensions | 15.70±0.20mm | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Attenuation (dB/100m) | Average Power (KW) |
| 150 | 3.00 | 3.23 |
| 300 | 4.25 | 2.19 |
| 450 | 5.32 | 1.82 |
| 800 | 7.22 | 1.34 |
| 900 | 7.70 | 1.26 |
| 1500 | 10.16 | 0.96 |
| 1800 | 11.23 | 0.87 |
| 2000 | 11.9 | 0.82 |
| 2400 | 13.17 | 0.72 |
| 3000 | 14.93 | 0.65 |
| Order Informations: | ||
| Marking | HELLOSIGNAL 1/2" AL RF COAXIAL CABLE ××× M | |
| Package | Inquired Length on Wooden Drum and Pallet. | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
