7/8" Low Loss RF Annular Corrugated Copper Tube Corrugated 50 ohm coaxial cable

Price Negotiable

Price: Negotiable

MOQ: 1 KM

Delivery Time: 25 working days

Brand: Zion communication OR OEM

Product Description

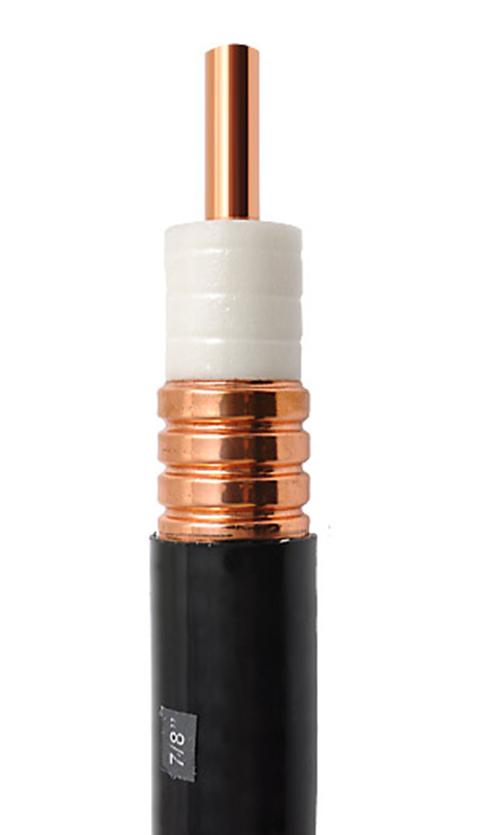

7/8" Low Loss RF Corrugated 50 ohm coaxial cable NO.7101109

Construction Parameters:
Inner Conductor	9.45±0.10mm Smooth Copper Tube
Insulation	22.50±0.20mm Foamed PE
Outer Conductor	25.40±0.20mm Annular Corrugated Copper Tube
Jacket	27.50±0.20mm PE, Black
Jacket Thickness	＞1.10mm
Application

Electrical Characteristics:
Capacitance	75 pF/m
Impedance	50 Ω
Velocity of Propagation	0.88
Peak Power Rating	90 KW
Peak Voltage	3.0 KV
Insulation Resistantce	>10000 MΩ.km
Insulation Voltage	10 KV
Inner Conductor DC Resistance	1.90 Ω/km
Outer Conductor DC Resistance	1.60 Ω/km
VSWR
800MHz-1000MHz	1.13
1700MHz-2500MHz	1.15
2500MHz-3000MHz	1.15


Mechanical and Envrionmental Properties:
Bending Radius (Single Bend)	150 mm
Bending Radius (Repeated Bend)	275 mm
Operating Temp Range	-55 to +85 ℃
Cable diamensions	27.50±0.20mm

Attenuation(20℃):
Frequency (MHZ)	Attenuation (dB/100m)	Average Power (KW)
200	1.60	6.41
300	2.49	3.82
450	3.45	2.76
800	3.62	2.62
900	3.85	2.19
1000	4.84	1.76
1500	5.43	1.79
1800	5.85	1.7
2000	6.14	1.60
2400	6.6	1.47
3000	7.30	1.21

Order Informations:
Marking	HELLOSIGNAL 7-8" LOW LOSS RF COAXIAL CABLE ××× M
Package	Inquired Length on Wooden Drum and Pallet.
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
