Buy China 50 ohm 7/8" radiating leaky coaxial cable with fire retardant polyolefin jacket

Price Negotiable

Price: Negotiable

MOQ: 1 KM

Delivery Time: 25 working days

Brand: Zion communication OR OEM

Product Description

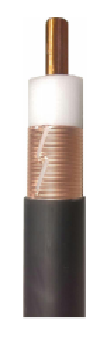

7/8”Radiating Leaky Cable(H Band) NO.7101132

CABLE TYPE: RFXT 7/8”-50H(BHF)；HLRCTY(Z)-50-22H

Construction
Inner Conductor	copper tube		Ø 9.0 mm
Dielectric	Cellular polyethylene		Ø 23.2 mm
Outer Conductor	Copper foil		Ø 23.5 mm
Jacket	Black PE or Black LSZH		Ø 27.5 mm
Marking	Brand, cable type, cable ID, meter mark

Electrical Characteristics at +20℃
Characteristic impedance		50 ± 2 Ω
Velocity		0.88
Capacitance		76 pF/m
Insulation Resistantce		>5000 MΩ.km
Insulation Voltage		10000 V
Jacket Spark Test Voltage		8000 V

VSWR
Frequency (MHz)		VSWR (Max)
790~960		1.3
1700~1900
1920~2025		1.4
2110~2200
2300~2500
2560~2620

MECHANICAL CHARACTERISTICS
Weigh		500kg/km
Maximum pulling force		1300N
Minimum bending radius
Single bending		250 mm
Repeated bending		300 mm
Operating temperature range		-40~ +80℃
Min. installation temperature		-20℃ (PE); -5℃ (LSZH)

Attenuation and Coupling Loss
Frequency (MHZ)		Attenuation dB/100m @20℃	Coupling Loss (50%/95%) dB
700		3.7	77/85
800		4.3	75/80
900		4.7	74/80
960		4.8	69/77
1800		8.8	68/75
1900		8.9	64/70
2000		10.0	67/73
2200		11.5	69/75
2400		13.3	67/73
2600		13.9	63/68
2620		15.1	64/70
Note: Attenuation tolerance 5%; Coupling Loss tolerance ±5dB

Order Informations:
Marking		HELLOSIGNAL 7/8”Radiating Leaky Cable(H Band) ××× M
Package		Inquired Length on Wooden Drum and Pallet.
Brand		HELLOSIGNAL® OR OEM
