RG8X 50ohm coaxial cable Copper Inner Conductor, Solid PE, Nom. 3.50mm Copper with PVC 50ohm coaxial cable
Price:
Negotiable
MOQ:
1 KM
Delivery Time:
25 working days
Brand:
Zion communication OR OEM
Product Description
|
RG58 BC BC PVC 50 Ohm coaxial Cable NO.7101207 |
||||
| Construction Parameters: | ||||
| Inner Conductor | 19×0.18mm Copper | |||
| Dielectric | 2.95mm Solid PE | |||
| Shield 1 | Nom. 3.50mm Copper | |||
| Jacket | 4.95mm PVC | |||
| Jacket Thickness | ||||
| Application | ||||
| Electrical Characteristics: | ||||
| Capacitance | 101.05 pF/m | |||
| Impedance | 50 Ω | |||
| Velocity of Propagation | 0.66 | |||
| Max Operating Voltage | 1900 VMS | |||
| Shielding Effectiveness(>dB) | 70 | |||
| RoHS | YES | |||
| Mechanical and Envrionmental Properties | ||||
| Cable bend radius | ||||
| Operating Temp Range | -20 ℃ to 80℃ | |||
| Cable diamensions | 4.95mm | |||

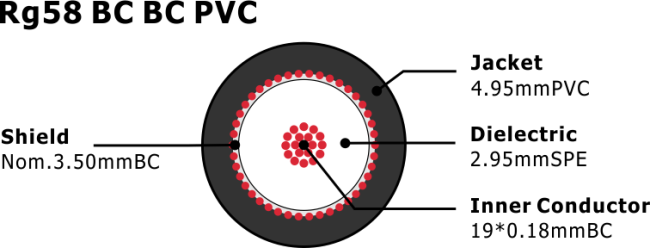

| Cross Section | ||||
 |
||||
| Attenuation(20℃): | ||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
| 100 | 15.10 | |||
| 400 | 30.80 | |||
| 1000 | 50.20 | |||
| Order Informations: | ||||
| Marking | HELLOSIGNAL RG58 BC BC PVC 50 Ohm COAXIAL CABLE 7101207×××M/FT |
|||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
| Delivery time | Normally 25 days after received the deposit. | |||
| Brand | HELLOSIGNAL® OR OEM | |||
