KX8+2x1.00 Figure 8 coaxial cables green cctv kx8 cable Manufacturer CCTV KX8+2C Coaxial Cable With Power Cable
Price:
Negotiable
MOQ:
30 KM
Delivery Time:
25 working days
Brand:
hellosignal
Product Description
| KX8+2×1.00 PVC - Figure 8(NO.7102073) | ||
Construction Parameters: |
||
| Inner Conductor: | 7 × 0.40mm Bare Copper | |
| Insulation: | 7.24mm SPE |
|
| Shield: | 168 x 0.16mm CCA (95%) | |
| Jacket: | 10.00mm PVC Green | |
| Power Wire Conductor: | 2 x 30/0.20mm = 1.00mm2 CCA | |
| Power Wire Insulation: | 2.40mm PVC in Red & Black | |
| Power Wire Jacket: | 5.80mm PVC Green | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | 87.5Ω/KM at 20℃ | |
| Capacitance | 67 ±3 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return Loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Mechanical and Envrionmental Properties: | ||
| Cable Bend Radius | 10 times the cable diameter | |
| Operating Temperature Range | -20 ℃ to +60℃ | |

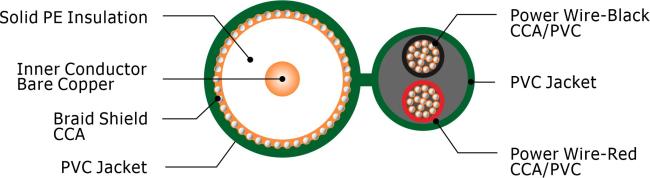

| Cross Section: | ||
 |
||
| Attenuation (20℃): | ||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |
| 10 | 5.00 | |
| 50 | 8.10 | |
| 100 | 13.00 | |
| 200 | 18.50 | |
| 400 | 22.50 | |
| 850 | 34.50 | |
| 950 | 37.50 | |
| 1000 | 45.00 | |
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||
| Order Informations: | ||
| Marking | HELLOSIGNAL KX6+2×1.00mm2 Figure 8 CCTV CABLE ...305M | |
| Inner Package | 300M or 500M/Wooden Spool/Carton | |
| Delivery time | Normally 25 days after received the deposit payment. | |
| Brand | HELLOSIGNAL® OR OEM | |
