Product Description

HD40+2×0.50

75 Ohm CCTV coaxial Cable

NO.7102131

Construction Parameters:
Inner Conductor 0.42mm Cu
Dielectric 1.9mm Foamed Polyethylene
Shield 1 AL/Pet/Al
Shield 2 TC 70%
Jacket 3.6mm PVC
Power Wire Conductor 2x(16×0.19mmCU )
Power wire Diameter of insulation 1.8mmPVC(Red,Black)
Jacket 6.7×5.6mm PVC Common
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20 shall be < 129.2 Ω/km
Capacitance 77 ±3 pF/m
Impedance 75 ± 3 Ω
Return loss 20dB
Velocity of Propagation 0.82
Sparker Test (VAC) 3

Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 to 60
Cable diamensions 6.7×5.6mm

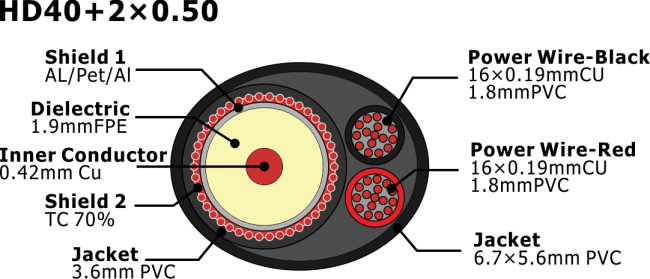

Cross Section
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 1.00 3.05
50 3.14 9.59
100 4.44 13.55
300 7.69 23.45
450 9.41 28.71
865 13.05 39.80
1000 14.03 42.79
1750 18.56 56.60
2150 20.57 62.73
2500 22.17 67.63
3000 24.29 74.09






Order Informations:
Marking HELLOSIGNAL HD40+2×0.50
CCTV COAXIAL CABLE 7102131 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
