CT167 CPE LSZH 75 Ohm CATV coaxial Cable
Price:
Negotiable
MOQ:
30 KM
Delivery Time:
Normally 15 working days
Brand:
Zion communication OR OEM
Product Description
|
75 Ohm CATV coaxial Cable NO.7100448 |
|||
| Construction Parameters: | |||
| Inner Conductor | 0.065"/1.67mm/14AWG BC | ||
| Dielectric | 7.28mm 5 cell air spaced PE | ||
| Shield 1 | overlapped copper foil | ||
| Shield 2 |
16*6*0.12mm bare copper braid wire 55% coverage |
||
| Jacket | 10.1±0.20mm LSZH | ||
| Jacket Thickness | 0.030"/0.76mm | ||
| Application | For Use in Longer CATV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 7.86 Ω/km | ||
| Capacitance | 52 ±3 pF/m 15.9 ±0.9 pF/ft | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 22dB | ||
| Velocity of Propagation | 0.85 | ||
| Sparker Test (VAC) | 4 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 60℃ | ||
| Cable diamensions | 7.8±0.20mm LSZH | ||

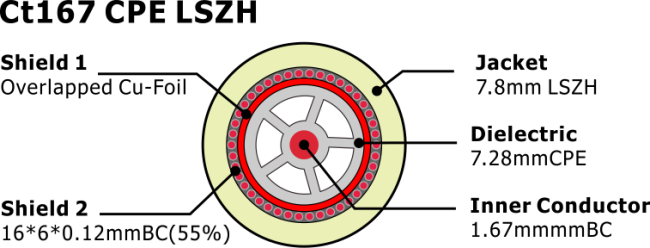

| Cross Section | |||
 |
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
| 5 | 0.80 | ||
| 10 | 1.20 | ||
| 50 | 3.20 | ||
| 100 | 5.40 | ||
| 200 | 6.50 | ||
| 300 | 8.50 | ||
| 470 | 11.00 | ||
| 600 | 13.50 | ||
| 1000 | 16.40 | ||
| Order Informations: | |||
| Marking |
HELLOSIGNAL CT167 CPE LSZH CATV COAXIAL CABLE 7100448 ×××M/FT |
||
| Package | Inquired Length on Reel,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
