HD70+2×0.75 75ohm Siamese Messenger Cable With Power Cable CCTV HD70 Coaxial Cable
Price:
Negotiable
MOQ:
30 KM
Delivery Time:
25 working days
Brand:
hellosignal
Product Description
|
HD70+2×0.75 75 Ohm CCTV coaxial Cable NO.7102137 |
||
| Construction Parameters: | ||
| Inner Conductor | 0.70mm Cu | |
| Dielectric | 2.9mm Foamed Polyethylene | |
| Shield 1 | AL/Pet/Al | |
| Shield 2 | TC 70% | |
| Jacket | 4.3mm PVC | |
| Power Wire Conductor | 2x(24×0.19mmCU ) | |
| Power wire Diameter of insulation | 2.0mmPVC(Red,Black) | |
| Jacket | 7.95×6.45mm PVC Common | |
| Application | For Use in Longer CCTV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 64.9 Ω/km | |
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |
| Impedance | 75 ± 3 Ω | |
| Return loss | 20dB | |
| Velocity of Propagation | 0.82 | |
| Sparker Test (VAC) | 3 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 60℃ | |
| Cable diamensions | 7.95×6.45mm | |

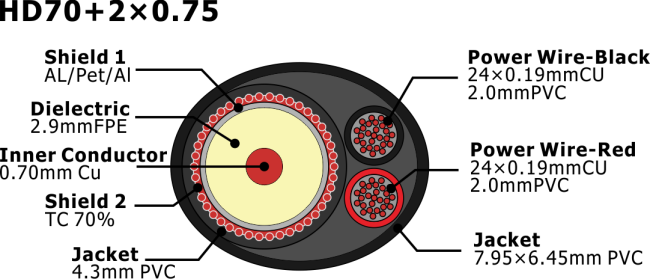

| Cross Section | ||
 |
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 1 | 1.80 | |
| 5 | 2.80 | |
| 10 | 3.90 | |
| 50 | 7.90 | |
| 100 | 11.10 | |
| 200 | 15.10 | |
| 400 | 21.80 | |
| 700 | 29.80 | |
| 900 | 34.40 | |
| 1000 | 36.00 | |
| Order Informations: | ||
| Marking | HELLOSIGNAL HD70+2×0.75 CCTV COAXIAL CABLE 7102137 ×××M/FT |
|
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
