67%+3X26 AWG Power PVC Jacket CCS RG59+3c Coaxial Cable With Power

Price Negotiable

Price: Negotiable

MOQ: 30 KM

Delivery Time: 25 working days

Brand: hellosignal

Product Description

RG59 67% + 3X26 AWG 75 Ohm CCTV coaxial Cable NO.7102104


Construction Parameters:
Inner Conductor	0.032"/0.81mm/20AWG CCS
Dielectric	0.144"/3.66±0.05mm Foamed Polyethylene
Shield	0.12mmAL-Braid(67%)
Jacket	6.0mmPVC
Power Wire Conductor	3x(10*0.12mmCCA )
Power wire Diameter of insulation	0.91HDPE(Red,Black,Blue)
Jacket	3.0mmPVC
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 139.5 Ω/km 42.55Ω/1000ft
Inner Conductor Resistance	The Max. at 20℃ shall be < 139.5 Ω/km 42.55Ω/1000ft
Capacitance	52 ±3 pF/m 15.8 ±1 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	6.0×3.0mm

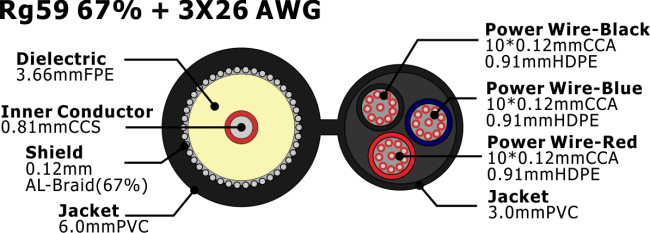

Cross Section
















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
5	0.86	2.82
55	2.05	6.73
83	2.45	8.04
187	3.60	11.81
211	3.80	12.47
250	4.10	13.45
300	4.45	14.60
350	4.80	15.75
400	5.10	16.73
450	5.40	17.72
500	5.70	18.70
550	5.95	19.52
600	6.20	20.34
750	6.97	22.87
865	7.52	24.67
1000	8.12	26.64

Order Informations:
Marking	HELLOSIGNAL RG59 67% + 3X26 AWG CCTV COAXIAL CABLE 7102104 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
