Trunk Cable QR 860M 4AWG CCA Inner Conductor 75 Ohm CATV Coaxial Cable

Price Negotiable

Price: Negotiable

MOQ: 30 KM

Delivery Time: Normally 15 working days

Brand: Zion communication OR OEM

Product Description

Trunk Cable QR860M 75 Ohm CATV Coaxial Cable NO.7100409

SSConstruction Parameters:
Inner Conductor	4AWG 5.16mm CCA
Dielectric	21.03mm Foamed PE
Outer Conductor	21.84mm Welding Aluminum Tube
Jacket	24.38mm PE Black
Jacket Thickness	1.27mm
Messenger	4.78mm Steel Wire
Application	For Use in Longer CATV Run Lengths

Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be <1.33 Ω/km
Capacitance	50 ± 3 pF/m
Impedance	75 ± 2 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	87%
Sparker Test (VAC)	4

Mechanical and Environmental Properties:
Cable Bend Radius	10 times the cable diameter
Operating Temperature Range	-40 ℃ to +85℃
Cable Diamensions	24.38mm PE Black

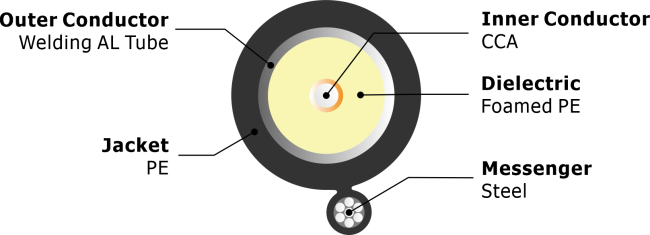

Cross Section:


Attenuation(20℃):
Frequency (MHZ)		Max Attenuation (dB/100m)
5		0.30
55		1.05
211		2.10
250		2.30
300		2.49
350		2.72
400		2.89
450		3.12
500		3.28
550		3.48
600		3.61
750		4.07
865		4.36
1000		4.72




Order Informations:
Marking	HELLOSIGNAL Trunk Cable QR860M ×××M
Package	Inquired Length on Wooden Drum, Pallet …
Delivery Time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
