Mini Coax +4×0.50 Cable 75ohm Siamese Messenger Cable With Power Cable CCTV Mini Coax Cable

Price Negotiable

Price: Negotiable

MOQ: 30 KM

Delivery Time: 25 working days

Brand: hellosignal

Product Description

Mini Coax +4×0.50(NO.7102182)
Construction Parameters:
Coaxial Cable
Inner Conductor	7x0,20mm Ø Stranded Copper
Dielectric	2,50mm Ø Solid PE
Shield 1	Al-Pes Tape /CU-Pes Tape
Shield 2	Aluminium Braid 70%
Power Cores
Inner Conductor	4x0,50mm² (7×0.18mm CU ) Stranded Copper
Insulation	1.0mm PVC
Overall Outer Sheath	6.0±0.2mm PVC Common RAL 7032 Grey


Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 64.9 Ω/km
Capacitance	52 ±3 pF/m
Impedance	75 ± 3 Ω
Velocity of Propagation	0.82
Sparker Test (VAC)	3

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃

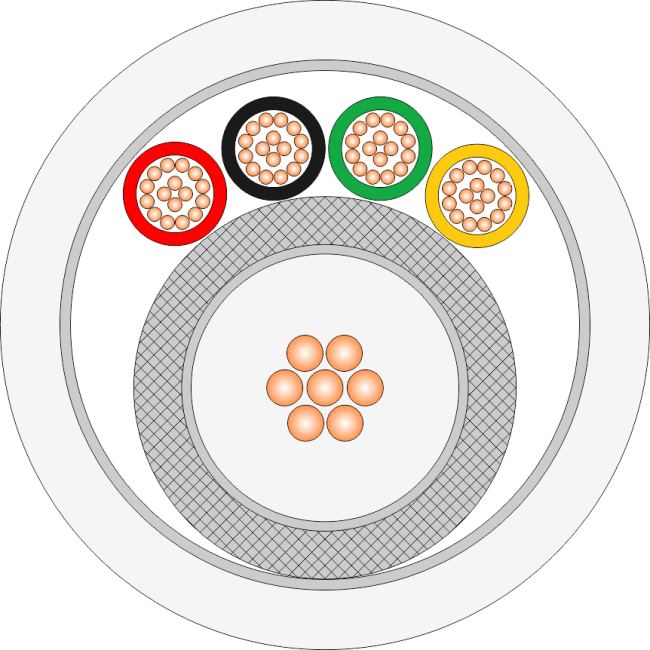

Cross Section

Attenuation(20℃):
Frequency (MHZ)		Max Attenuation (dB/100m)
1		1.80
5		3.90
10		4.80
50		11.00
100		15.20
200		21.80
400		29.80
700		34.40
900		36.00
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations
Marking	HELLOSIGNAL MINI COAX + 4x 0,50 mm² CCTV 4+1, CCTV COAXIAL CABLE 7102182×××M
Package	100M,200M Roll, Spool
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
