12 Fibers OM3 LSZH MPO Patch Cord Custom Meters for High-Density Data Centers
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
Normally 25 days after received the deposit.
Brand:
HELLOSIGNAL® OR OEM
Product Description
12 Fibers MPO Female To MPO Female OM3 3.0mm LSZH MPO Patch Cord Custom Meters
High-density MPO fiber optic patch cord designed for modern data transmission in demanding environments.
Product Identification
Zion Code: ZCM1127HLA1X
Zion Description: MPO Female To MPO Female OM3 3.0mm LSZH 12 Fibers MPO Patch Cord (Custom Meters)
Product Overview
The MPO connector is a high-density, multi-core fiber connector engineered for contemporary data transmission requirements. It is extensively utilized in high-density settings including data centers, optical fiber building infrastructure, and internal optical device connections for systems such as 40G, 100G, and QSFP+ transceivers.
MPO Patch Cord Features
- Construction: Terminated with MPO connectors on both ends, connecting MPO modules as a permanent link
- Configurations: Available in multiple fiber counts: 12, 24, 48, 60, 72, 96, and 144 fibers
- Data Rates: Supports up to 10/40/100Gbps transmission speeds
- Flexibility: Easy reconfiguration by changing cassettes instead of cable trunk connectors
- Applications: Interconnecting cassettes, panels, and MPO fan-outs; Rapid deployment in high-density cabling setups; Designed for 40G QSFP+ SR4, 40G QSFP+ CSR4, and 100G QSFP28 SR4 optics
Connector Industrial Standards
MPO Singlemode Reference:IEC 61754-7
MPO Singlemode Housing Details:SM APC (Green/Yellow connectors + black boot)
MPO Multimode Reference:IEC 61754-7
MPO Multimode Housing Details:OM1/OM2 (Beige), OM3/OM4 (Aqua/Heather Violet)
Optical Specifications
Insertion Loss (MPO) Singlemode (APC):Standard: ≤0.75dB; Low Loss: ≤0.35dB
Insertion Loss (MPO) Multimode (PC):Standard: ≤0.6dB; Low Loss: ≤0.35dB
Return Loss (MPO) Singlemode (APC):≥60dB
Return Loss (MPO) Multimode (PC):≥25dB
Durability Singlemode (APC):<0.3dB typical change (200 matings)
Tensile Strength Singlemode (APC):>70N
Operating Temperature Singlemode (APC):-40°C to +85°C
Key Features
- Low Loss: High-performance with low insertion loss and high return loss
- Rugged Options: Available with round cable, oval cable, and bare ribbon options
- Identification: Color-coded housings for easy fiber type and grade differentiation
- Compatibility: Interchangeable for structured cabling systems and compliant with global standards (IEC 61754-7, Telcordia GR-1435-CORE, TIA-568-C)
Applications
- High-Density Data Centers: Efficiently supports dense cabling requirements
- Optical Fiber Infrastructure: Ideal for building connectivity
- Internal Optical Connections: Provides reliable connections for fiber equipment
Length Tolerance Specifications
Overall Length(L)(m): length of tolerance(cm)
0<L<1: +5/-0
1<L<10: +10/-0
10<L<40: +15/-0
40<L: '+0.5% x L/-0

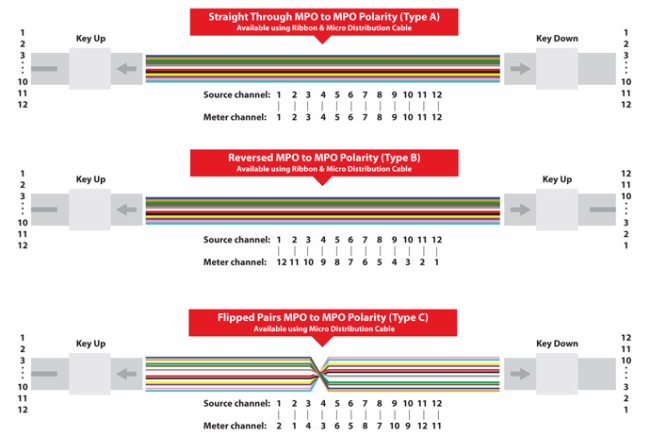

MPO Polarity Connection Methods
Polarity A Connection
Polarity A MPO cables use a key up, key down design. Position 1 of one connector corresponds to position 1 of another connector with no polarity flip. Requires A-B duplex patch cables on one end and A-A duplex patch cables on the other end for proper signal transmission.
Polarity B Connection
Polarity B MTP cables use a key up, key up design. Position 1 of one connector corresponds to position 12 of another connector. Requires A-B duplex patch cables on both ends for proper polarity flip and signal transmission.

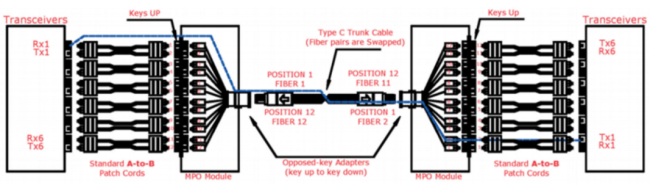

Polarity C Connection
Polarity C MPO cables use a key up, key down design with internal fiber cross configuration. Position 1 of one connector corresponds to position 2 of another connector. Requires A-B duplex patch cables on both ends for proper signal routing.
Note: Polarity type is specified in the product naming rules - Polarity A, Polarity B, or Polarity C.
Related Products
7236001 | ZCM1122HIA1X
MPO Female to MPO Female SM 3.0mm LSZH 12 Fibers Patch Cord - Single-mode fiber patch cord for high-speed data centers and backbone cabling
7236002 | ZCM1152HIA1X
MPO Female to MPO Female SM 3.0mm LSZH 24 Fibers Patch Cord - High-density single-mode solution supporting 40G/100G Ethernet
7236003 | ZCM1127HLA1X
MPO Female to MPO Female OM3 3.0mm LSZH 12 Fibers Patch Cord - Multimode fiber connectivity for 10G/40G/100G networks
7236004 | ZCM1157HLA1X
MPO Female to MPO Female OM3 3.0mm LSZH 24 Fibers Patch Cord - Optimized for high-density multimode (OM3) networks
7236005 | ZCM1128HMA1X
MPO Female to MPO Female OM4 3.0mm LSZH 12 Fibers Patch Cord - Designed for high-speed multimode (OM4) connections
7236006 | ZCM1158HMA1X
MPO Female to MPO Female OM4 3.0mm LSZH 24 Fibers Patch Cord - Efficient and reliable multimode solution for 40G/100G networks
Packaging Information
This easily handled and well-protected fiber optic cable package is labeled and marked by OMC as default. Standard carton sizes: 34*22*15 cm; 44*34*24 cm; 54*39*34 cm. Carton selection depends on order quantity. Custom packaging available.
OEM/ODM Services
- Cable color, printing text, material of cable jacket, connector color customization
- OEM Label, identification ring, cable labels, box design, shipping marks
- Different quality levels available
