8 Fibers MPO-LC Harness Cable with OM3 Fiber and 2.0mm Straight Design for High-Density Data Centers
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
Normally 25 days after received the deposit.
Brand:
HELLOSIGNAL® OR OEM
Product Description
8 Fibers MPO to LC OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables

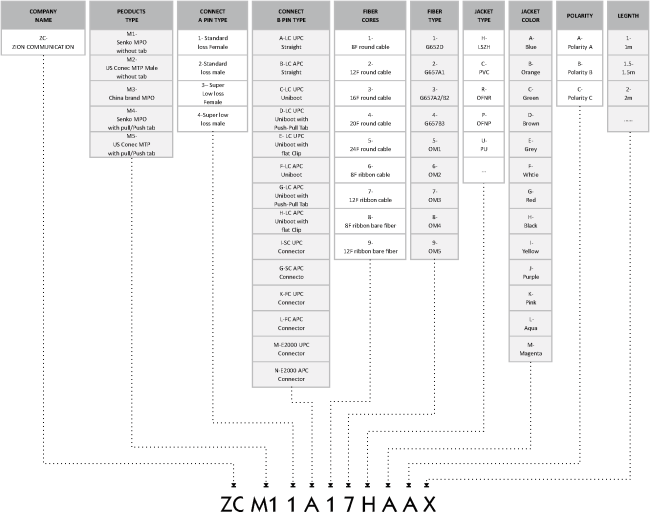

Zion Code: ZCM11A17HAAX
The ZCM11A17HAAX is an 8F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cable, primarily used for high-density data center applications, optical fiber building connections, and internal connections in optical transceiver equipment such as QSFP+ and 10G SFP+ LR optics.
Key Features
- MPO (Multi-Fiber Push On) connector: High-density fiber connector commonly used in data centers and optical networking
- Fiber Type: 8 fibers MPO to 4xLC uniboot or simplex (4xLC) fanout cables

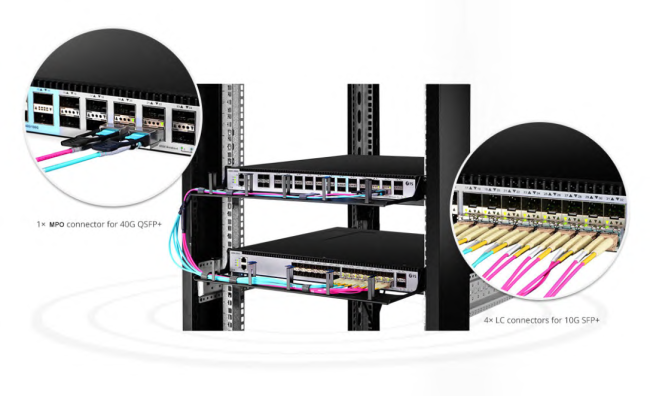

- Performance: Optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection, eliminating the need for patch panels or intermediate trunks
- Design: Straight harness cables with low insertion loss and high return loss, ensuring high performance and reliability
- Applications: Ideal for direct connections in data centers, eliminating clutter and improving cable management
- Standards Compliance:
- Meets IEC-61754-7, IEC-61755, TIA-604-5 (FOCIS5), and TIA-568-C standards
- 10G Fiber Channel and 40G, 100G IEEE 802.3 compliant
- Connector Specifications:
- MPO Singlemode (APC) connectors: Green for Standard loss MPO and Yellow for Super low loss MPO
- MPO Multimode (PC) connectors: Aqua for OM3 & OM4, Heather Violet for OM3 & OM4 PC
Connectors Industrial Standard
- MPO Singlemode: IEC 61754-7 (SM APC: Green connectors + black boot / SM APC: Yellow connectors + black boot)
- MPO Multimode: IEC 61754-7 (OM1 & OM2 PC: Beige connectors + black boot, OM3 & OM4 PC: Aqua connectors + black boot)
- Other Connectors: SC, LC, FC, ST, and E2000 meet their respective industrial standards (TIA/EIA, FOCIS3, FOCIS10, GR-326, etc.)
Optical Specifications
- Insertion Loss:
- MPO (Singlemode) standard loss ≤0.75dB, super low loss ≤0.35dB
- LC/SC/FC/ST ≤0.3dB
- Return Loss:
- MPO ≥60dB (Singlemode), LC/SC/FC/ST APC ≥60dB, UPC ≥50dB
- Durability:
- Less than 0.3dB change after 200 matings
- 500 insert-pull cycles
- Tensile strength >70N
- Operating Temperature: -40°C to +85°C
Product Merits
- High Quality: Factory pre-terminated, tested, and packaged with test reports for quality control
- Space Saving: Small diameter cables that reduce volume and improve air conditioning efficiency in data centers
- Time Saving: Plug-and-play design for quick installation without the need for additional patch panels
Applications
- High-density fiber patching in data centers
- Direct connections for QSFP+ to SFP+ optics, simplifying and optimizing high-speed network connections
- Fiber optic connections in buildings and between fiber equipment for internal use
Zion Communication's Hot MPO-LC Straight Harness Cables
| Product Code | Description |
|---|---|
| 7236037 ZCM11A12HIAX | 8F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236038 ZCM11A22HIAX | 12F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236039 ZCM11A52HIAX | 24F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236040 ZCM11A17HAAX | 8F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236041 ZCM11A27HAAX | 12F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236042 ZCM11A57HAAX | 24F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236043 ZCM11A18HMAX | 8F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236044 ZCM11A28HMAX | 12F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236045 ZCM11A58HMAX | 24F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236046 ZCM21A12HIAX | 8F MTP SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236047 ZCM21A22HIAX | 12F MTP SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236048 ZCM21A52HIAX | 24F MTP SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236049 ZCM21A17HAAX | 8F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236050 ZCM21A27HAAX | 12F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236051 ZCM21A57HAAX | 24F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236052 ZCM21A18HMAX | 8F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236053 ZCM21A28HMAX | 12F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236054 ZCM21A58HMAX | 24F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
Three Connection Methods for MTP/MPO Polarity
MPO - 8 x LC Simplex Structure - Type 1
MPO - 4 x LC Duplex Structure - Type 2
MPO - 4 x Uniboot LC Structure - Type 3
Material Details
Packaging
This easily handled and well-protected fiber optical cable package has been labeled and marked by OMC as default. Standard carton sizes: 34*22*15 cm; 44*34*24 cm; 54*39*34 cm. Carton selection depends on goods quantity. Custom packaging available.
OEM/ODM Services
- Cable color, printing text, material of cable jacket, connector's color
- OEM Label, Identify ring, cable's label, box, shipping marks
- Different quality levels available
