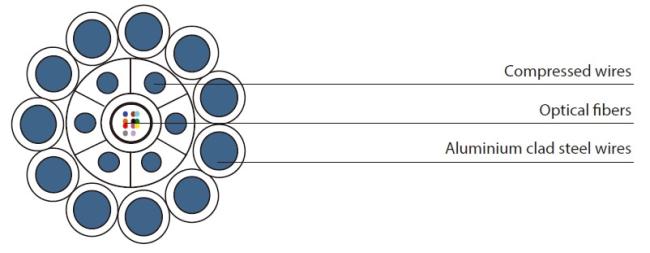

Typical Designs of Lightning Resistant Central
Stainless Steel Tube OPGW with Compressed Wires

The central stainless steel tube is surrounded by double layers of aluminium clad steel wires(ACS),the inner layer aluminium clad steel wires are compressed,the outer layer aluminium clad steel wires are all compressed or all round.

Characteristic and Application

Compressing round AS wires into sector AS wires during stranding.
Compared with round AS wires stranding, sector AS wires stranding can increase the cross section and fault current capacity while the cable diameter is the same.
Compared with round AS wires stranding, sector AS wires stranding can dramatically increase the diameter of outer wires to enhance the lightning performance.
Apply to the transmission line which requires small diameter and large fault current.
Apply to heavy thunderstorm areas.

Typical Parameters

• Cable Type (OPPC-XX/YY): Various OPPC (Optical Phase Conductor) models.
• Current Rating (measured in Amps, likely the maximum current each cable can carry under different temperature ranges).
• Temperature Ranges: Different operating temperatures: 40-70°C, 40-80°C, and 40-90°C.
• Other Values: The remaining values are likely related to different specifications, such as power loss, tensile strength, or specific electrical characteristics at those temperatures.

Packaging and Drum Details

Cable Sheath Marking:

• Marking Color: White
• Contents:
  • Manufacturer: ZION
  • Year of Manufacture
  • Cable Type
  • Cable Number
  • Length Marking Interval: 1 ± 0.2% m
• Customizable Marking: The outer sheath legend can be altered per user requests.

Reel Length:

• Standard Length: 2 to 3 km per reel
• Custom Lengths: Available upon request

Cable Drum:

• Drum Material: Fumigated wooden or plywood drums
• Sealing: Both ends sealed with plastic caps to prevent moisture during shipping, handling, and storage.
• Testing Access: The inner end of the cable is available for testing purposes.

Cable Packing:

• Protective sealing ensures no moisture infiltration during transit or storage, guaranteeing optimal product integrity upon delivery.
