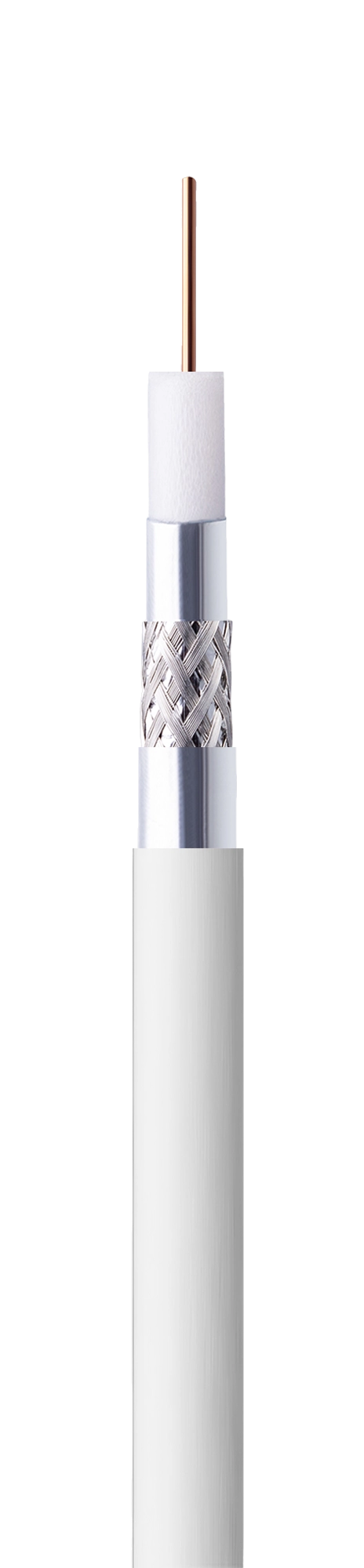

RG6T Cable - SA Class A++ Eca For Optimal Signal Transmission

Key Information & Construction Parameters:

SKU:

7170103

Class CPR

Eca

Standards:

EN50117-9-2
CEI-UNEL 36762
EN50575

Inner Conductor Material

Plain Copper (Cu)

Inner Conductor Size

1.00 ± 0.02mm

Insulation Material

Foam Polyethylene(PEG)

Insulation Size

4.80 ± 0.10mm

Shield 1

Al/Pet/Al+Sur

Shield 2

Tinned Copper(CuSn) braiding wire

45% Coverage

Shield 3

Al/Pet

Jacket

Material: PVC

OD: 6.80 ± 0.10 mm

Color: White/Black or customerzied

Application

DOCSIS 3.1 (Data Over Coax System)
4K-UHD
Indoor Installation

Electrical Characteristics & Physical Properties:

Characteristic impedance

200 MHz  75±3 Ohm

Capacitance (@1kHz)

52 ± 2 pF/m.Nom

Velocity Ratio

82% Nom.

Inner conductor resistance

22.50 Ω/km

Outer conductor resistance

14 Ω/km

Loop resistance

36.50 Ω/km

Sheat Insulation voltage

3 kV

Maximum current (Ieff)

6 A

Structural Return Loss(SRL)

5 - 470 MHz

>30 dB

470 - 1000 MHz

>28 dB

1000 - 2000 MHz

>26 dB

2000 - 3000 MHz

>22 dB

Screening Attenuation(SA)
SA-Class A++

30 - 1000 MHz

>105 dB

1000 - 2000 MHz

>95 dB

2000 - 3000 MHz

>85 dB

Transfer Impedance

    5-30 MHz

＜ 6.0 mOhm/m

Min.Bending Radius

35/70 mm

Max. Cable Pulling Strength

120 N

Operating Temperature

-20 / +70 °C

Attenuation (at 20°C )

Frequency (MHZ)

Max Attenuation (dB/100m)

5

1.60

10

2.20

30

3.50

50

4.50

200

8.70

300

10.80

470

13.70

*The above data is for reference only, the actual order test report shall prevail.
