1/2" Super Flex Jumper Cable 4.3/10 Male to 4.3/10 Male
Price:
Negotiable
MOQ:
10 KM
Delivery Time:
25 working days
Brand:
Zion communication OR OEM
Product Description

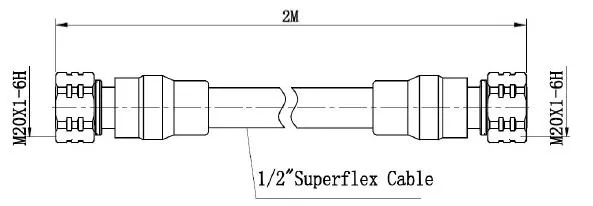

| 1/2" Superflex Jumper, 4.3/10 Male Straight to 4.3/10 Male Straight No.71011105A4B4MS |
|||
| Cross Section: | |||
 |
|||
| Interface: | |||
| According to | IEC 61169-54 | ||
| Electrical: | |||
| Characteristic Impedance | 50 ohm | ||
| Freqency Range | DC-4GHz | ||
| VSWR | ≤1.12(0-3GHz) | ||
| ≤1.15(0-4GHz) | |||
| PIM (@2-tonex20w) | ≤-160dBc | ||
| Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | ||
| Dielectric Resistance | ≥5000MΩ | ||
| Contact Resistance | Center Contact ≤1.0mΩ | ||
| Outer Contact ≤1.0mΩ | |||
| Mechanical: | |||
| Durability | Mating cycles ≥100 cycles | ||
| Material and plating: | |||
| Material | Plating | ||
| Body | Brass | Tri-alloy | |
| Insulator | PTFE | - | |
| Center conductor | Phosphor bronze/Brass | Ag | |
| Others | Brass | Ni | |
| Environmental: | |||
| RoHS-compliance | Full RoHS compliance | ||
| Temperature Range | -60℃～+85℃ | ||
| Watertightness | IP6 | ||
| Salt-fog test | 96h | ||
