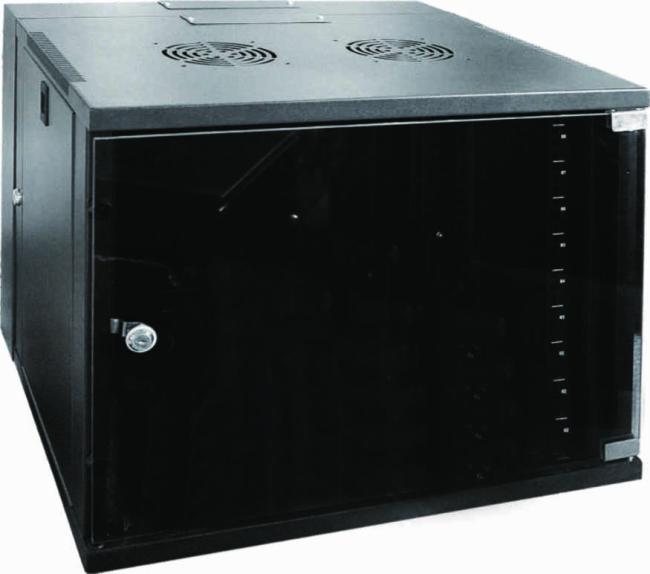

ZWS-C Double Section Wall Cabinet with Tempered Glass Door and Steel Frame for Network Equipment
ZWS-C Double Section Wall Cabinet
A professional 19-inch double-section wall cabinet designed for network, telecom, and security equipment, with convenient rear access, organized cable routing, and reliable enclosure protection.
Double Section Design
Tempered Glass Door
IP20 Protection
The ZWS-C cabinet combines a steel frame structure, double-section access, tempered glass front door, and top/bottom cable entry to support clean installation and easier maintenance in compact wall-mounted deployments.
- Product Overview
- Key Features
- Material & Construction
- Main Structure / Dimensions
- Typical Applications
■ Product Overview
The ZION ZWS-C Double Section Wall Cabinet is designed for network, telecom, and security equipment that requires convenient rear access and dependable enclosure protection. Its double-section structure improves installation efficiency and maintenance accessibility, while the 19-inch compatibility supports standard rack-mounted devices.
This cabinet is suitable for organized indoor equipment deployment where cable routing, equipment protection, and maintenance convenience all matter.
■ Standards Compliance
ANSI/EIA RS-310-D · IEC 60297-2 · DIN 41497 Part 1 · DIN 41494 Part 7 · GB/T 3047.2-92
■ Key Features

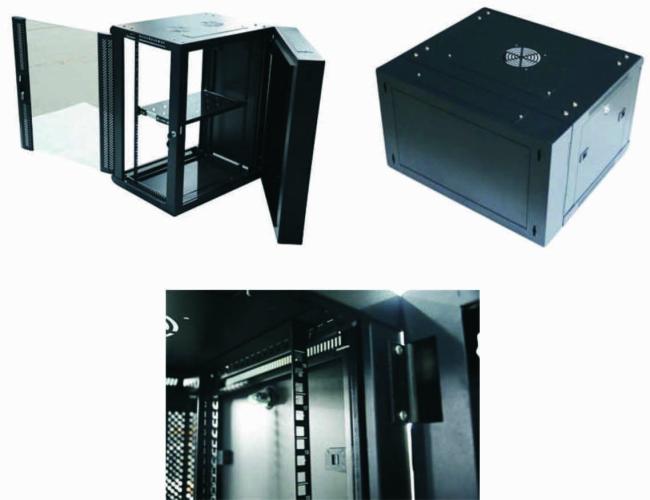

Steel Frame Structure
Assembled cabinet with precise craftsmanship for dependable enclosure strength.
Double-Section Design
Compatible with standard 19-inch equipment and offers better rear-side accessibility.
180° Tempered Glass Front Door
Supports easier installation, inspection, and servicing of mounted equipment.
Bolted Side Panels
Simplifies routine access and maintenance work.
Top & Bottom Cable Entry
Cover plate design helps keep cable routing clean and organized.
Fan-Ready Top Panel
Supports active ventilation for improved thermal management.
■ Material & Construction
| Item | Specification |
|---|---|
| Frame Material | SPCC high-quality cold rolled steel |
| Mounting Profile Thickness | 1.2 mm |
| Other Parts Thickness | 1.0 mm |
| Surface Treatment | Degreasing → Pickling → Phosphating → Powder Coating |
| Static Loading Capacity | Up to 30 kg |
| Protection Level | IP20 |
■ Main Structure / Dimensions
The product sheet shows an exploded structure diagram together with multi-view layout drawings, illustrating the cabinet body, top and bottom plates, rear door, front door, lock, and mounting position details.
This double-section construction is intended to improve cable access, simplify rear maintenance, and support cleaner equipment management in wall-mounted environments.
■ Typical Applications
LAN / Structured Cabling
For switches, patch panels, and cable management in office or building networks.
Telecom Equipment
Suitable for wall-mounted communication equipment in compact indoor installations.
Security Systems
Supports surveillance, access control, and related devices needing protected enclosure space.
Small Equipment Rooms
A practical option where floor-standing racks are unnecessary or space is limited.
