UL Industrial CAT5e Cable , Industrial Automation Cables Grey Jacket
Price:
Negotiable
MOQ:
10 KM
Delivery Time:
25 working days
Brand:
Zion communication OR OEM
Product Description
https://www.zion-communication.com/Industrial-Ethernet-Cable-pl569518.html
| ▉ Application | ||||||||
| Apply to a complex industrial environment and moved installation. It can be used in the system of EtherCAT and EtherNET/IP. Application in electric power transportation metallurgy, water treatment, and other industries. |
||||||||
| ▉ Cable Construction | ||||||||
| Conductor: Solid or stranded copper wire | ||||||||
| Insulation: PO | ||||||||
| Shield: AL/Mylar screen and copper wire braid | ||||||||
| Jacket: see attached list | ||||||||
| Color: grey(similar to RAL 7035) | ||||||||
| ▉ Cable Construction | ||||||||
| Professional design, reduce the using cost. | ||||||||
| Double shielded cable, excellent Anti-EMI performance and Reliable transmission | ||||||||
| PUR jacket is resistant to oil, abrasion, and hydrolysis | ||||||||
| Fire resistance meets IEC60332-1 UV resistance | ||||||||
| LSZH jacket has good performance of low smoke,halogen-free, and high security | ||||||||

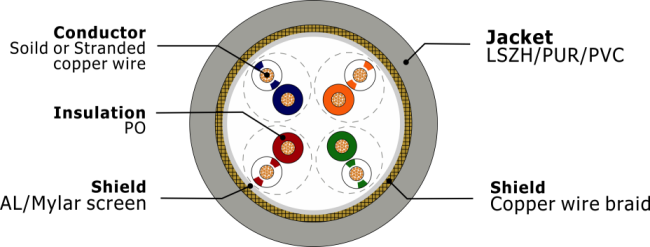

| ▉ Cross Section | ||||||||
 |
||||||||
| ▉ Technical data | ||||||||
| Temperature range | .-40℃ to 80℃ | |||||||
| Test voltage | 1000V | |||||||
| Peak voltage | (Data transmission application)125V | |||||||
| Characteristic impedance 100±15 Ohm | 100±15 Ohm | |||||||
| Min bending radius | Fixed installation:8x cable diameter | |||||||
| Occasional movement:10x cable diameter | ||||||||
| Power Chain:12x cable diameter | ||||||||
| Other characteristics | According to ANSI/TIA-568 and IEC11801 | |||||||
| ▉ Product List | ||||||||
| Item No. | Spec. | Jacket | Nominal OD(mm) |
Copper.weight approx (kg/km) | Weight approx(kg/km) | Application | ||
| 7130000 | 4*2*AWG24/1 | LSZH | 6.8 | 32 | 54 | Fixed installation | ||
| 7130001 | 4*2*AWG24/1 | PUR | 6.8 | 32 | 52 | |||
| 7130002 | 4*2*AWG24/1 | PVC | 6.8 | 32 | 54 | |||
| 7130003 | 4*2*AWG26/7 | LSZH | 6.1 | 26 | 56 | Occasional movement | ||
| 7130004 | 4*2*AWG26/7 | PUR | 6.1 | 26 | 54 | |||
| 7130005 | 4*2*AWG26/7 | PVC | 6.1 | 26 | 56 | |||
| 7130006 | 4*2*AWG26/19 | PVC | 6.3 | 27 | 54 | Power Chain | ||
| 7130007 | 4*2*AWG26/19 | PUR | 6.3 | 27 | 54 | |||
| ▉ Order Information | ||||||||
| Marking | HELLOSIGNAL Industrial CAT5e Cable XXXFT/M | |||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet … | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
