8/12 Cores Waterproof Fiber Terminal Box with PLC Splitter for Fiber Optic Distribution
Price:
Negotiable
MOQ:
1,000 PCS
Delivery Time:
Normally 10 workingdays
Brand:
Zion communication OR OEM
Product Description
Fiber Optical Terminal Box
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
Inquire Now
Fiber Terminal Box -- ZCFTB-08/12

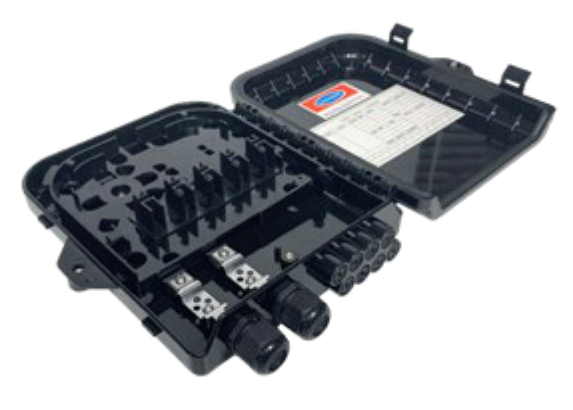

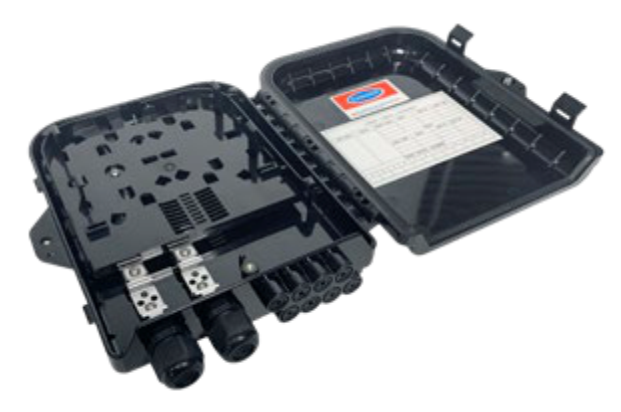

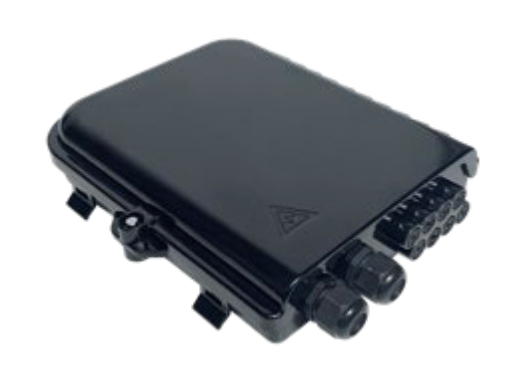

ZCFTB-08H




Technical Specification - ZCFTB-08H
| Capacity | 8 cores |
| Accessible Cable Diameter | Φ8-Φ12mm |
| Material | ABS/PC+ABS |
| Protection Level | IP55 |
| Dimension (W*H*D) | 249*203*53mm |
| Input Cable Method | Cutting |
| Inlets/Outlets | 2/8 |
| PLC Splitter | Tube & module type |

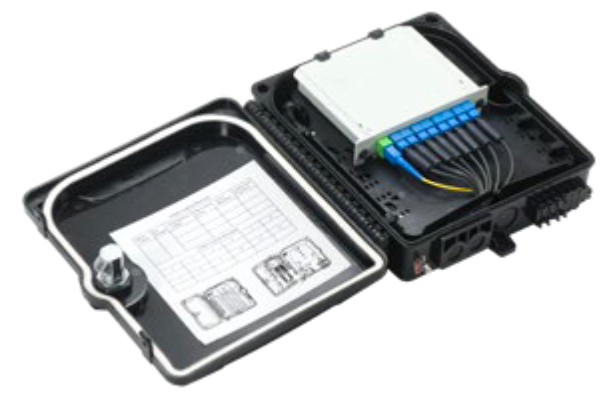

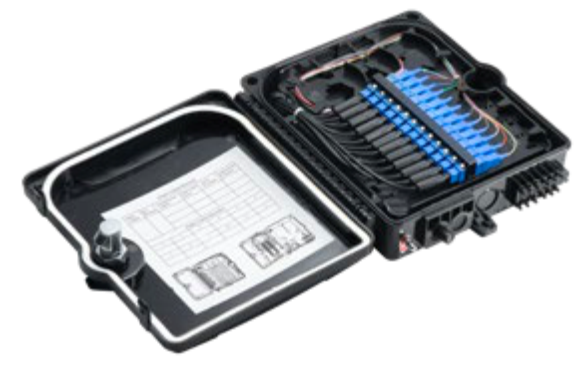

ZCFTB-12B-1/08B-1



Technical Specification - ZCFTB-12B
| Capacity | 12 cores |
| Accessible Cable Diameter | Φ7-Φ15mm |
| Material | ABS/PC+ABS |
| Protection Level | IP55 |
| Dimension (W*H*D) | 230*215*65mm |

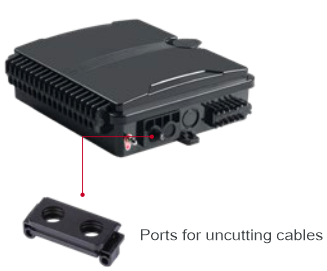

| Input Cable Method | Uncutting |
| Inlets/Outlets | 2/12 |
| PLC Splitter | Tube & module type |
