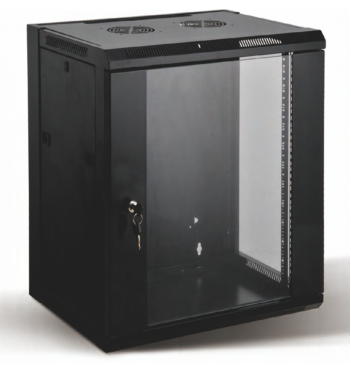

| SE Wall Box | |||||||||
| Technical Data | |||||||||
| Materials: |  |
||||||||
| · SPCC Cold Rolled Steel; | · others: 1.2mm. | ||||||||
| · Thickness: Mounting profile: 1.2/1 .5mm; | |||||||||
| Colour: | |||||||||
| · ZCSE.■■■■ ■■0■■: RAL7035 | |||||||||
| · ZCSE.■■■■ ■■1■■: RAL9004 | |||||||||
| Loading Capacity: | |||||||||
| · Static loading: 60KG. | |||||||||
| COMPLIANCE (Reference Standard) | |||||||||
| · Comply with ANSI/EIA RS-310-D · IEC60297-2 · DIN41494;PART1; DIN41494;PART7. |
 |
||||||||
| Feature | |||||||||
 |
· Flat packing and patent frame, packing time is less than 5 minutes, around 1/3~ 1/4 assembled original volume when flat pack. · Cable entry on both of top cover and bottom panel. · Steel front door, opening direction of door can be changed, turning angle of front door is over 180 degrees. · Different optional style of doors · Wall mounted panel, convenience for installation, locked from inside with screw, avoiding to be stolen or accidentally dropped. · Flat side panel, easy installation. · Installation depth of mounting profile can be available changed. · 19"standard installation. |
||||||||
| May Installs The Fitting | |||||||||
|

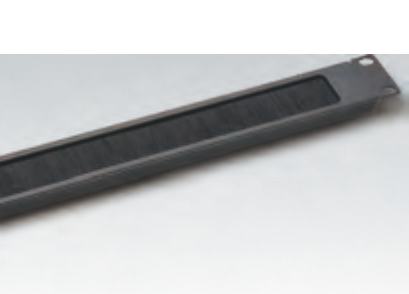

· Threading hole with brush |

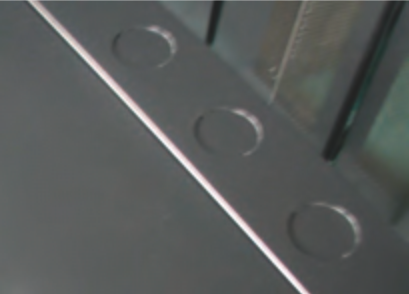

· Circular threading hole (Ø50MM) |
||||||||
|

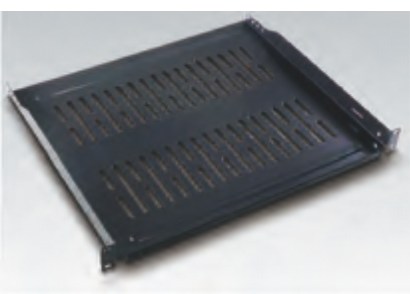

· Cantilever shelf |
· Cable management |
||||||||
|

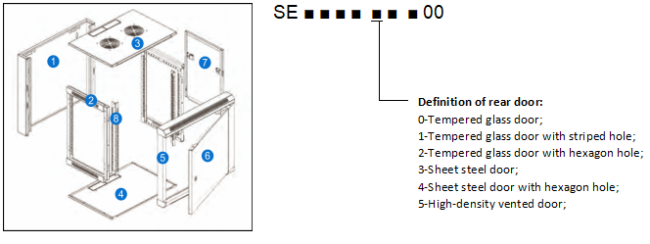

Definition Of Cord
|
|||||||||
|
|
|||||||||
| Main Part | |||||||||
| S/N | Specification | Qty | Material | Surface Finish | Remark | ||||
| 1 | Back frame | 1 | SPCC t1.0 | Powder coated | ····· | ||||
| 2 | Side frame | 2 | SPCC t1.0 | Powder coated | ····· | ||||
| 3 | Top cover | 1 | SPCC t2.0 | Powder coated | ····· | ||||
| 4 | Bottom | 1 | SPCC t1.0 | Powder coated | ····· | ||||
| 5 | Front frame | 1 | SPCC t1.0 | Powder coated | See next page | ||||
| 6 | Front door | 1 | 5MM toughed glass door/SPCC t1.2 |
Powder coated | Available on request | ||||
| 7 | Side panel | 2 | ····· | Powder coated | ····· | ||||
| 8 | 19"rails | 2 | SPCC t1.0 | Powder coated | <15U Thinkness : 1.2mm >= 15U Thinkness:1.5mm |
||||
| A | M6 screw & nuts | 10 | Steel | Color zinc | 20pcs for over 12U | ||||
| B | Trox tooling | 1 | Steel | Black | ····· | ||||
| Specification: | |||||||||
| Part Number. | RU | Width (mm) |
Depth(D) (mm) |
Height(H)(mm) | Volume (CBM) |
20GP (PCS) |
40GP (PCS) |
CKD packing part |
|
| ZCSE.5406.SESC | 6 | 570 | 450 | 370 | 0.04317 | 672 | 1297 | 1 | |
| ZCSE.5606.SESC | 600 | 0.05353 | 542 | 1046 | 2 | ||||
| ZCSE.5409.SESC | 9 | 570 | 450 | 500 | 0.05117 | 567 | 1094 | 1 | |
| ZCSE.5609.SESC | 600 | 0.05757 | 504 | 973 | 1 | ||||
| ZCSE.5412.SESC | 12 | 570 | 450 | 635 | 0.06397 | 453 | 875 | 1 | |
| ZCSE.5612.SESC | 600 | 0.06397 | 453 | 875 | 1 | ||||
| ZCSE.5415.SESC | 15 | 570 | 450 | 770 | 0.0768 | 378 | 729 | 1 | |
| ZCSE.5615.SESC | 600 | 0.0768 | 378 | 729 | 1 | ||||
| ZCSE.5418.SESC | 18 | 570 | 450 | 900 | 0.0896 | 324 | 625 | 1 | |
| ZCSE.5618.SESC | 600 | 0.0896 | 324 | 625 | 1 | ||||
| ZCSE.5422.SESC | 22 | 570 | 450 | 1080 | 0.1067 | 272 | 525 | 1 | |
| ZCSE.5622.SESC | 600 | 0.1067 | 272 | 525 | 1 | ||||
| ZCSE.5427.SESC | 27 | 570 | 450 | 1305 | 0.1280 | 227 | 438 | 1 | |
| ZCSE.5627.SESC | 600 | 0.1280 | 227 | 438 | 1 | ||||
| Suggestion: For overload reason, we don't suggest SE wall mount cabinet to be fully loaded on 40HQ container. | |||||||||

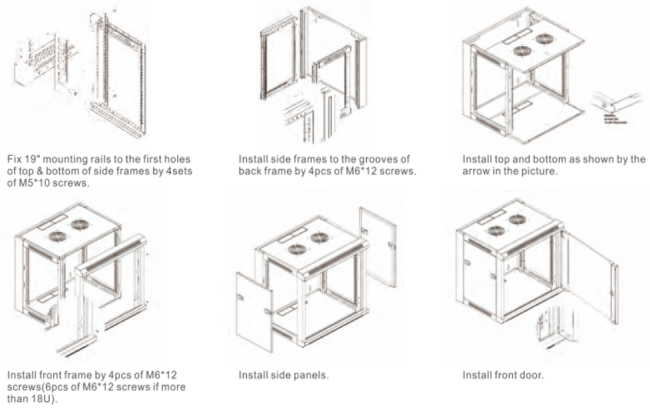

| Assembling Draft | |||||||||
 |
|||||||||
