| VA Wall Box | |||||||||
| Technical Data | |||||||||
| Materials: |  |
||||||||
| · SPCC Cold Rolled Steel; | |||||||||
| · Thickness: Mounting profile: 2.0mm; | |||||||||
| · others: 1.0mm. | |||||||||
| Colour: | |||||||||
| · ZCVA.■■■■0■■: RAL7035 | |||||||||
| · ZCVA.■■■■1■■: RAL7021 | |||||||||
| Loading Capacity: | |||||||||
| · Static loading: 30KG. | |||||||||
| Finish: | |||||||||
| · Pretreated steel coated with textured, polyester powder paint | |||||||||
| COMPLIANCE (Reference Standard) | |||||||||
| · Comply with ANSI/EIA RS-310-D | |||||||||
| · IEC60297-2 | |||||||||
| · DIN41494;PART1; DIN41494;PART7. | |||||||||
| Feature | |||||||||
 |
· Disassembled and small packaging, easy to deliver and carry. · Special design front and back frames are with good stability. · 16 screws are needed to assemble the whole enclosure. It will take only 10 minutes to assemble the enclosure by one person. · Front door is with corrective structure to avoid door dropping. · Opening direction could be changed easily. · Cable entries are available on top, bottom and back of enclosure, suitable for different places. · The patented cable entries are adjustable and with the design to prevent wires from scratching. · Opening direction of enclosures can be changed quickly. Automatic locking ensures safety and relability. · Maximum Loading capacity: 30kgs. |
||||||||
|

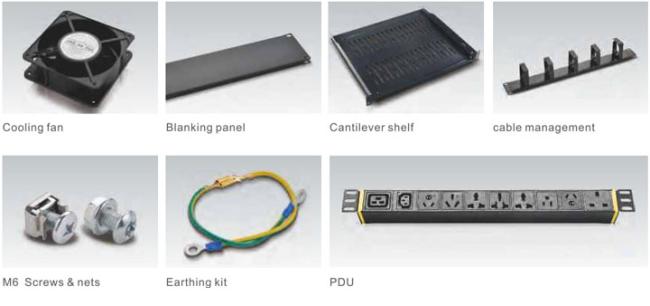

May Installs The Fitting
|
|||||||||
 |
|||||||||
| Definition Of Cord | |||||||||
 |
|||||||||
|

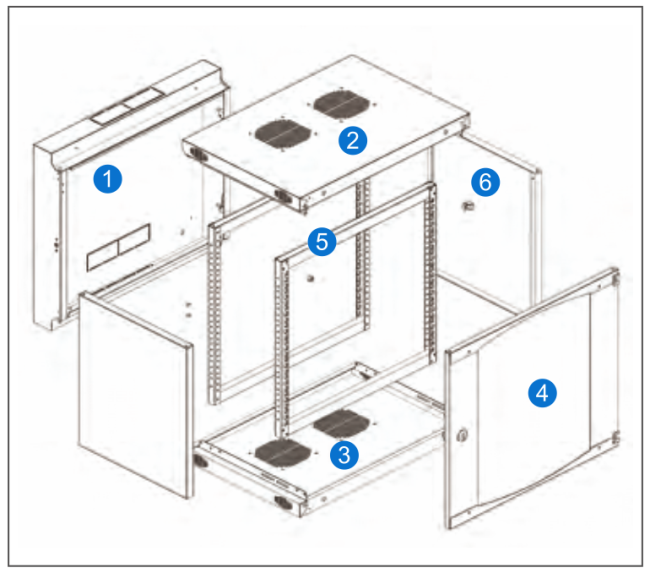

Main Part |
|||||||||
| S/N | Specification | Qty | Material | Surface Finish | Remark | ||||
| 1 | Back frame | 1 | SPCC t1.0 | Powder coated | ····· | ||||
| 2 | Top cover | 1 | SPCC t1.0 | Powder coated | ····· | ||||
| 3 | Bottom | 1 | SPCC t1.0 | Powder coated | ····· | ||||
| 4 | Front door | 1 | 4MM toughed glass door/SPCC t1.0 |
Powder coated | Small lock | ||||
| 5 | 19"rails frame | 2 | SPCC t2.0 | Powder coated | ····· | ||||
| 6 | Side panel | 2 | SPCC t1.0 | Powder coated | ····· | ||||
| Order Information: | |||||||||
| Part Number. | RU | Width (mm) |
Depth(D) (mm) |
Height(H)(mm) | Disassembled packing dimension(MM) |
Assembled packing dimension(MM) |
|||
| ZCVA.5406.VADS | 6 | 540 | 450 | 327 | 570*280*440 | 550*460*350 | |||
| ZCVA.5606.VADS | 600 | 570*310*545 | 550*610*350 | ||||||
| ZCVA.5409.VADS | 9 | 540 | 450 | 460 | 600*265*490 | 550*460*480 | |||
| ZCVA.5609.VADS | 600 | 600*310*530 | 550*610*480 | ||||||
| ZCVA.5412.VADS | 12 | 540 | 450 | 593 | 600*265*625 | 550*460*610 | |||
| ZCVA.5612.VADS | 600 | 600*290*625 | 550*610*610 | ||||||
| ZCVA.5415.VADS | 15 | 540 | 450 | 725 | 600*265*760 | 550*460*750 | |||
| ZCVA.5615.VADS | 600 | 600*290*760 | 550*610*750 | ||||||

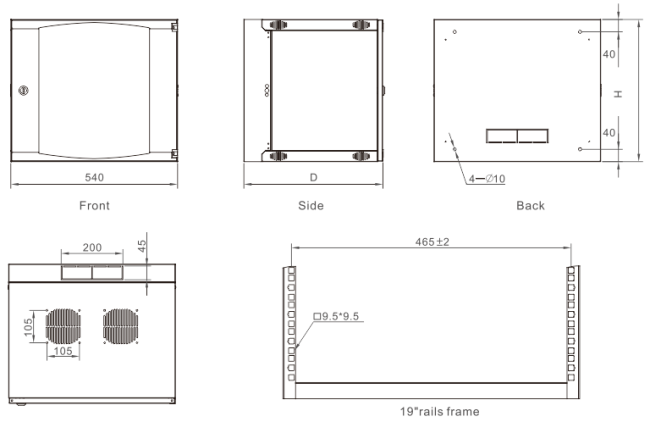

| Main Structure | |||||||||
 |
|||||||||
