S/FTP CAT 7 Network Cable 600Mhz 10Gbps Plenum PVC Jacket NO 7112405
S/FTP CAT 7 CMP Network Cable ,600Mhz,10Gbps, Copper Conductor, Sftp Cat7 Ethernet Cable, Cat7 Lan Cable NO 7112405
S/FTP CAT 7 CMP 600Mhz -Global Market (NO. 7112405)
Construction
| Conductor: | 0.585±0.005mm Solid Bare Copper | |||||
| Pairs: | 4 Pairs | |||||
| Insulation: | 1.50±0.05 mm FEP | |||||
| Insulation Colors: | Blue-White/Blue, Orange-White/Orange | |||||
| Green-White/Green, Brown-White/Brown | ||||||
| Shielded | AL/PET Foil,100% Coverage | |||||
| Cover every pair | ||||||
| Overall Shield | Aluminum Foil | |||||
| Braiding | TC or Al_Mg, 40% Coverage | |||||
| RipCord: | Kevlar | |||||
| Out Jacket: | 7.8±0.3 mm PVC CMP UL/ETL | |||||

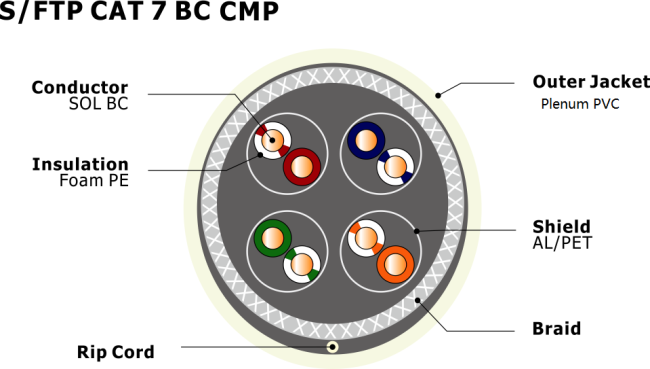

Cross Section
COMPLIANCE (Reference Standard)
-
ISO/IEC 11801-1 Ed.1.0
-
ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D
-
UL444,UL1581,UL1666,IEC60332-1,EN50399
Application Support
- 10GBASE-T , 1000BASE-T , 100BASE-T , 10BASE-T
- 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4
Electrical Characteristics
| DC Resistance | ＜9.38 Ohms/100m @20℃ | |||||||
| DC Resistance unbalance | 2% @ 20℃ | |||||||
| Mutual Capacitance | 5.6 nF/100m | |||||||
| Characteristic Impedance | 1 - 100 MHz: 100±15 Ohms | |||||||
| 100 - 2750 MHz: 100±25 Ohms | ||||||||
| Max Frequency | 750MHz | |||||||
| Capacitance Unbalance | 330 pF/100m | |||||||
| NVP | 74% | |||||||
| Delay Skew | ≤ 25ns/100m | |||||||
Physical Properties
| Pulling Tension(Max) | ≥13.5Mpa | |||||||
| Bend Radius(Min) | 8×OD of Jacket | |||||||
| Operating Temperature | -20 to 60 ℃ (-4 to 140℉) | |||||||
Performance Characteristics
| Frequency | RL (Min.) | Insertion Loss(Max.) | ACR | PSACR | NEXT (Min.) | PSNEXT (Min.) | ACR-F | PS ACR-F |
| MHz | dB | dB/100m | dB/100m | dB/100m | dB | dB | dB/100m | dB/100m |
| 1 | 20/32.7 | 2.1/1.8 | 75.9/101.9 | 72.9/108.2 | 78/103.7 | 75/110.5 | 78/94.8 | 75/102.3 |
| 4 | 23/27.4 | 3.7/3.4 | 74.3/103.4 | 71.3/113.8 | 78/106.8 | 75/117.2 | 78/90.5 | 75/91.8 |
| 10 | 25/35.9 | 5.8/5.3 | 72.2/106.3 | 69.2/115.8 | 78/111.6 | 75/121.1 | 78/109.5 | 75/116.2 |
| 16 | 25/36.6 | 7.3/6.8 | 70.7/107 | 67.7/115.1 | 78/113.9 | 75/121.9 | 78/107.5 | 75/114.5 |
| 20 | 25/36.4 | 8.2/7.6 | 69.8/102.5 | 66.8/109.7 | 78/110.2 | 75/117.4 | 78/115.7 | 75/117.7 |
| 31.25 | 23.6/39.2 | 10.3/9.7 | 67.7/102.7 | 64.7/109.8 | 78/112.4 | 75/119.5 | 75.4/106.8 | 72.4/109.8 |
| 62.5 | 21.5/33.6 | 62.5/13.9 | 63.4/100.1 | 60.4/107.7 | 78/113.5 | 75/121.6 | 69.4/102.4 | 66.4/109.8 |
| 100 | 20.1/37.8 | 18.5/17.7 | 59.5/90.6 | 56.5/99.8 | 78/108.3 | 75/118.7 | 65.3/100.8 | 62.3/103 |
| 200 | 18/38.9 | 26.5/25.2 | 47.4/87.3 | 44.4/93.6 | 73.9/112.5 | 70.9/118.7 | 59.3/85.9 | 54.3/89.5 |
| 300 | 17.3/36.9 | 32.7/31.1 | 38.6/75.1 | 35.6/81.1 | 71.2/106.5 | 68.2/112.2 | 55.8/84.7 | 52.8/90.1 |
| 400 | 17.3/36.2 | 38/36.1 | 31.4/71.9 | 28.4/80.8 | 69.4/108 | 66.4/116.9 | 53.3/71.9 | 50.3/76.8 |
| 500 | 17.3/34.8 | 42.840.4 | 25.2/55.7 | 22.2/62.9 | 67.9/96.1 | 64.9/103.4 | 51.3/79.6 | 48.3/83.6 |
| 600 | 17.3/32.8 | 47.1/44.4 | 19.6/52.5 | 16.6/57.4 | 66.7/97 | 63.7/101.8 | 49.7/69.9 | 46.7/71.7 |
| ※700 | 33.5 | 48.2 | 50.6 | 57.8 | 98.8 | 106.0 | 59.9 | 61.0 |
| ※800 | 29.9 | 51.8 | 42.8 | 51.9 | 94.6 | 103.7 | 60.9 | 62.9 |
| ※850 | 31.0 | 53.9 | 28.4 | 40.8 | 82.2 | 94.7 | 48.1 | 55.2 |
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.
※Note: Values for frequencies beyond 600mHZ are for information only
Order Information
| Marking | HELLOSIGNAL NO.7112406 S/FTP CAT7 4PR 23AWG Copper LSZH ...305M(1000FT) (or Per customer's request) | |||||||
| Inner Package | 305m/Spool(or Per customer's request) | |||||||
| Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
