High Speed Outdoor Cat6A Lan CableTwisted Pair FUTP 6A 23AWG Waterproof

Price Negotiable

Price: Negotiable

MOQ: 10 KM

Delivery Time: 25 working days

Brand: Zion communication OR OEM

Product Description

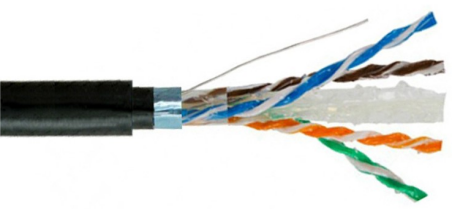

High Speed Cat6A Outdoor Lan Cable Twisted Pair FUTP 6A 23AWG 0.565mm BC 1000ft Waterproof CableV


F/UTP CAT 6A BC Jelly Double PE (NO. 7112317)

COMPLIANCE (Reference Standard and Certificates)
· ISO/IEC 11801-1 Ed.1.0
· ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D
· UL444,UL1581,UL1666,IEC60332-1,EN50399

Application Support
· 10GBASE-T , 1000BASE-T , 100BASE-T , 10BASE-T
· 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4

Construction					Electrical Characteristics
Conductor:		0.565±0.005mm Solid Bare Copper			DC Resistance			＜9.38 Ohms/100m @20℃
Pairs:		4 Pairs			DC Resistance unbalance			5% @ 20℃
Insulation:		1.14±0.05 mm HDPE			Mutual Capacitance			5.1 nF/100m
Insulation Colors:		Blue-White/Blue,Orange-White/Orange			Characteristic Impedance			1 - 100 MHz : 100±15 Ohms
		Green-White/Green,Brown-White/Brown						100 - 200 MHz : 100±22 Ohms
Cross Section:		Modified Polyethylene						200 - 500 MHz : 100±32 Ohms
Filling:		Jelly			Max Frequency			500MHz
Shielded 1st:		PET Foil			Capacitance Unbalance			330 pF/100m
Drain Wire:		0.40±0.005mm TC			NVP(传输速率)			66%
Shielded 2nd:		AL/PET Foil			Delay Skew			≤ 45ns/100m
Rip Cord:		Cotton
Inner Jacket:		7.4±0.3 mm PE
Shielded 3rd:		PET Foil
Out Jacket:		8.9±0.5 mm PE

Performance Characteristics
Frequency	RL (Min.)	Insertion Loss(Max.)	Propagation Delay (Max.)	Delay Skew(Max.)		NEXT (Min.)	PSNEXT (Min.)		ELNEXT (Min.)	PSELNEXT (Min.)
MHz	dB	dB/100m	ns/100m	ns/100m		dB	dB		dB/100m	dB/100m
1	20.0	2.1	570.0	45.0		74.3	72.3		67.8	64.8
4	23.0	3.8	552.0	45.0		65.3	63.3		55.8	52.8
10	25.0	6.0	545.4	45.0		59.3	57.3		47.8	44.7
16	25.0	7.6	543.0	45.0		56.2	54.2		43.7	40.7
20	25.0	8.5	542.1	45.0		54.8	52.8		41.8	38.8
31.25	23.6	10.7	540.4	45.0		51.9	49.9		37.9	34.9
62.5	21.5	15.4	538.6	45.0		47.4	45.4		31.9	28.9
100	20.1	19.8	537.6	45.0		44.3	42.3		27.8	24.8
200	18.0	29.0	536.1	45.0		39.8	37.8		21.8	18.8
300	17.3	36.4	536.1	45.0		37.1	35.1		18.3	15.3
400	17.3	43.0	535.8	45.0		35.3	33.3		15.8	12.8
500	17.3	45.3	535.6	45.0		33.8	31.8		13.8	10.8
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations
Marking			HELLOSIGNAL NO.7112317 F/UTP CAT6A 4PR 23AWG BC Jelly Double PE...500M
