Ethiopia Standard Speed Limiter GPS Tracker Support Bluetooth Printer Overspeed Alarm

Technical Parameter:

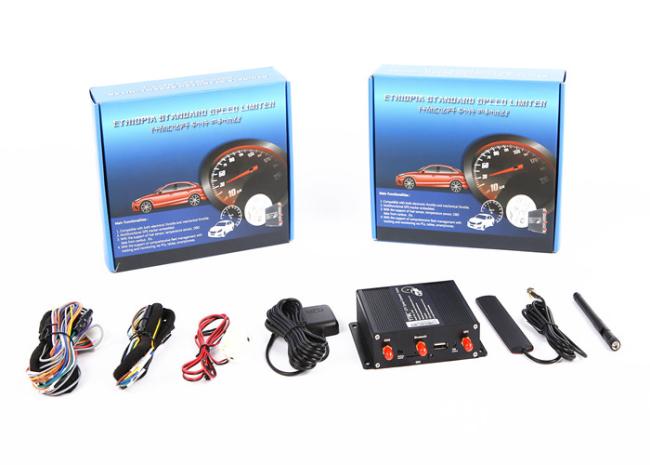

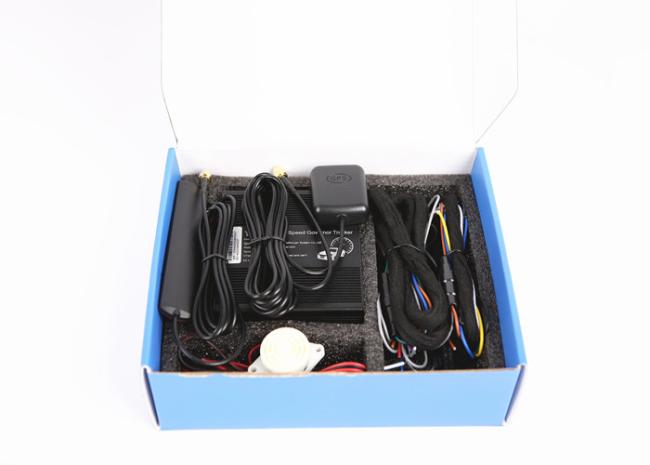

Accessories:

1.Power wire

2.Speed limiter wire

3.Buzzer

4.GPS antenna,

5.Host

6.GSM antenna

7.Bluetooth antenna

8.Bluetooth printer(optional)

The install steps

1.Find the vehicle accelerator pedal line harness at first, then find the two signal lines from the six lines with multi-meter test.

2.Cut the two signal lines, and then connect <10brown line+9yellow line> and <4blue line+3white line> to the signal lines respectively.

3.Find the speed pulse signal line of the car, connect to the 9 gray line of the GPS speed limiter, connect the speed pulse line, and the speed limit delay time is within 1 second.

4.Set the speed limit

5.For the Mechanical throttle, need add the relay.

6.Yellow line 4 of speed limiter

Set the speed limit

1. How to set the speed limit value
After GPS SPEED LIMITER is installed completely, start the vehicle first. When the vehicle is idling, send a text message “STARTIDLE*123456”, the device will automatically learn the idle voltage, and then return the learned idle voltage value to the mobile phone---- this is very important!
Then use the text message "SPEED*123456*40" to set the speed limit value, first test it with GPS speed, and the speed limit function is normal.
2. How to calibrate the pulse coefficient
You can find the original car speed pulse line to be connected with the device’s pulse line. Then you can make the car run at a constant speed of 30km/h, then press the button twice to calibrate the current pulse coefficient.
Please be noted with: same vehicles have the same pulse coefficient
The default pulse coefficient is 450.
If you already know the pulse coefficient of the vehicle, you can set it directly by SMS.
PULSE*123456*26 (Note: this command sets the pulse coefficient to 26)
And you can set the speed limit value from platform when device is online,

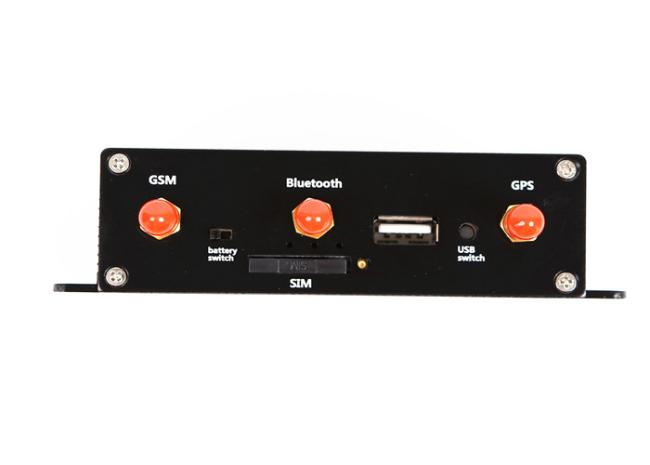

3. Download the data to U-disk:
Press and hold USB SWITCH for more than 3 seconds, all data will be downloaded to the U disk.
Besides, USB switch for other functions:
USB switch pressed continuously 2 times, it is automatic calibration pulse coefficient
USB switch presses continuously 3 times, it is connected to the Bluetooth printer to print data
4. Pulse speed showed on platform
From platform, you can see the speed limit value and the pulse speed value

Ethiopia Standard Speed Limiter GPS Tracker Support Bluetooth Printer Overspeed Alarm

Our Service
1. We provide free web tracking system, Android and IOS APP.

2. Our device can send data to your own server.

3. we can guide you to install the tracking system into your server if you have own server.

4. We provide OEM and ODM services.

5. Warranty: 24-month
