4 Ton Folding Arm Crane Mounted Truck SQ4ZA2 Knuckle Boom Truck Crane 9400 mm Max Working Radius

Product Description:

We can product different kindly of truck with loading crane with different brand chassis according to customer’s demand. Generally speaking, this kind of truck insists of cargo truck chassis, cargo box, PTO(power-take-off) and crane.

Crane brand optional: SUNY, XCMG, UNIC, SANY, FEITAO, SHIMEI

Crane style optional: telescopic boom and knuckle boom.

Crane load capacity optional: 1 ton, 2 ton, 3.2 ton, 4 ton, 5 ton, 6.3 ton, 8 ton, 10 ton, 12 ton, 14, ton, 16 ton, 25 ton, 30 ton, 50 ton.....

Product Description:

SUNY SQ4ZA2 Knuckle Truck Crane

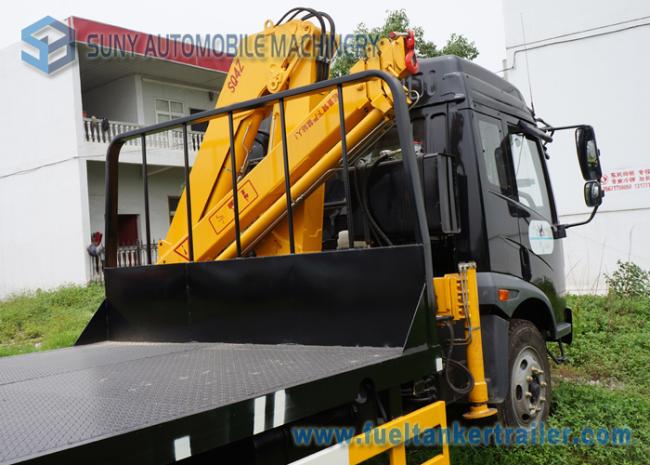

The SYSQ4ZA2 knuckle boom crane (color optional), there have more images as below.

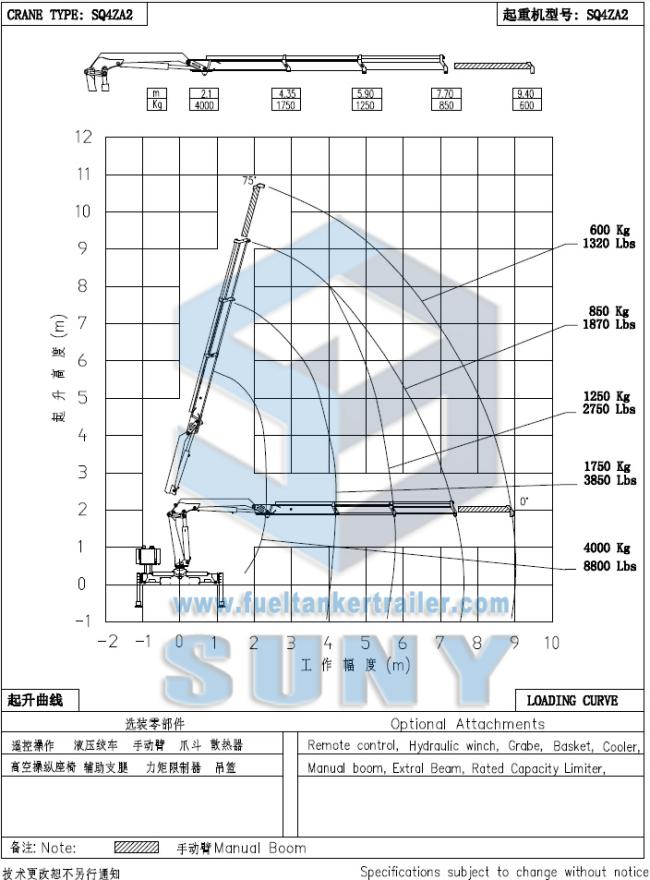

Note: our fold arm crane SQ4ZA2, the largest load 4 ton, the standard model max. working radius is 7700 mm, if you need longer, which can increase one more manual operation arm that max working could to be 9400 mm.

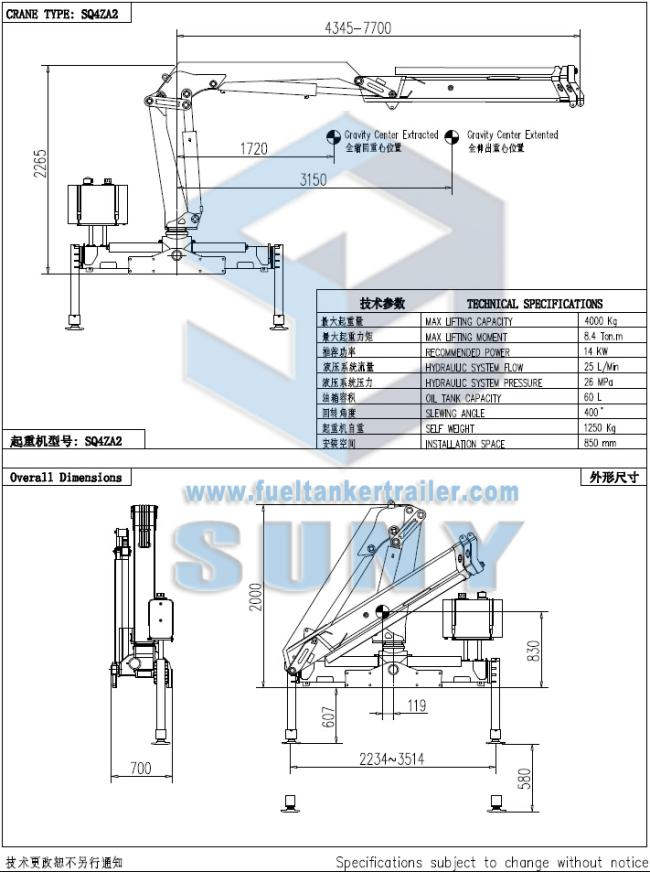

Following is drawing of the SYSQ4ZA2 folding arm truck crane ( Which include detailed specification on it ):
