Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
6T6D ISUZU 6 Ton Boom Capacity 4X2 Light Duty Wrecker Tow Truck
Description:
1) Flat bed tow truck can tow 2 units truck at one time. It ’ s mainly for towing light cargo truck, mini bus and car;
2) Wrecker truck is mainly for towing medium duty and heavy duty cargo truck and bus;
3) Rotator tow truck, its boom can rotate 360 degree and suitable for all the direction towing work. It ’ s mainly for towing heavy duty cargo truck and super heavy duty trailer.
Applications:
Our high quality and competitive price 6 ton SYTW6IS rotator wrecker with wireless remote control is mainly for towing heavy duty cargo truck and super heavy duty trailer.
Competitive Advantage:
1) Wireless remote control boom, winch and under - lift is optional;
2) 12 ton towing rating;
3) Mainly made by alloy steel, high quality and competitive price.
Specifications:
6T6D ISUZU 6 Ton Boom Capacity 4X2 Light Duty Wrecker Tow Truck
|
Chassis model |
ISUZU QL1100TPARY |
|
|
upper type |
6T6D Integrated |
|
|
( kg ) GVW |
10000 |
|
|
( kg ) Kerb weight |
6305 |
|
|
( mm ) Length |
7790 |
|
|
( mm ) Width |
2260 ~ 2430 |
|
|
( mm ) Height |
2510 ~ 2690 |
|
|
( mm ) Wheelbase |
5200 |
|
|
Front wheel span / Rear wheel span ( mm ) |
1680 / 1650 |
|
|
( mm ) Front Axle / Rear Axle |
1110 / 1480 |
|
|
( ° ) Angle of approach / Angle of mosey |
21 / 12 |
|
|
drive type |
4x2 |
|
|
tyre size |
8 . 25 - 20 |
|
|
( km / h ) Max HR |
110 |
|
|
( % ) Max GRAB |
30 |
|
|
( m ) Max turning diameter |
19 |
|
|
( mm ) MIN Ground Clearance |
215 |
|
|
Engine |
type |
4HK1 - TC ( EURO Ⅲ ) |
|
( kW / r / min ) power |
129 / 2600 |
|
|
( ml ) Displacemsnt |
5193 |
|
|
( N · m / r / min ) torque |
500 / 1500 ～ 2000 |
|
|
( L ) fuel exhaustion of 100km |
Diesel 16 |
|
|
( kg ) Rated recovery capacity |
10000 |
|
|
underlift |
( kg ) lifting capacity ( full retracted ) |
6000 |
|
( kg ) Lifting capacity ( fully extended ) |
3500 |
|
|
( mm ) Distance from tail aboard |
1970 |
|
|
( mm ) Stoke |
720 |
|
|
( 0 ) Tilt angle of under lift : up |
11 . 5 |
|
|
( 0 ) Tilt angle of under lift : down |
- 3 |
|
|
( 0 ) Angle of loading |
- 4 ～ 9 |
|
|
( 0 ) Angle of unloaded |
- 4 ～ 93 |
|
|
( mm ) under - lift fully extended max clearance from fork entry to ground |
1355 |
|
|
BOOM |
Boom stage |
2 |
|
( kg ) Max . lifting capacity |
6000 |
|
|
( mm ) Stoke |
1540 |
|
|
( mm ) Max length of boom |
3130 |
|
|
( mm ) Max . lifting height of hook |
3155 |
|
|
( 0 ) Range of elevation |
3 ～ 26.5 |
|
|
Leg |
quantity ( unit ) |
2 |
|
( mm) Transverse span of rear leg |
1410 |
|
|
Winch |
quantity ( unit ) |
2 |
|
( kN ) Per Rated traction force |
40 |
|
|
( mm ) cable DIA |
φ 11 |
|
|
( m ) cable L |
15x2 |
|
|
( m / min ) Min . line speed of winch cable |
3 . 23 |
|

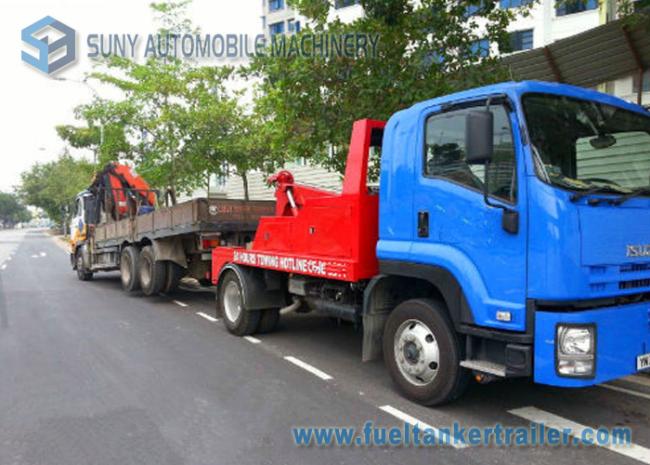

More pictures:
