SUNY SQ16SA6 16 Ton Straight Arm Telescopic Boom Crane Truck

16 Ton Telescopic Boom Straight Arm Crane Mounted Truck 24380 mm Working Radius

Product Description:

We can product different kindly of truck with loading crane with different brand chassis according to customer’s demand. Generally speaking, this kind of truck insists of cargo truck chassis, cargo box, PTO(power-take-off) and crane.

Crane brand optional: SUNY, XCMG, UNIC, SANY, FEITAO, SHIMEI

Crane style optional: telescopic boom and knuckle boom.

Crane load capacity optional: 1 ton, 2 ton, 3.2 ton, 4 ton, 5 ton, 6.3 ton, 8 ton, 10 ton, 12 ton, 14, ton, 16 ton, 25 ton, 30 ton, 50 ton.....

Product Description:

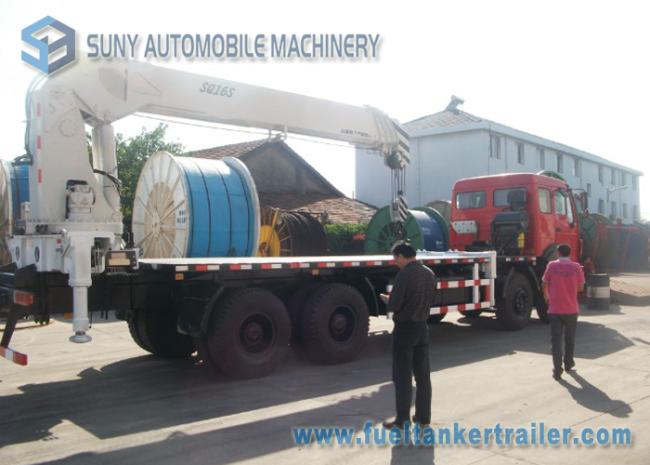

SUNY SQ16SA6 Telescopic Boom Truck Crane

The SYSQ16SA6 telescopic boom crane ( color optional), there have more images as below.

Note: our straight arm crane SQ16SA6, the largest load 16 ton, the standard model max. working radius is 24380 mm, which does not include increasing jib.

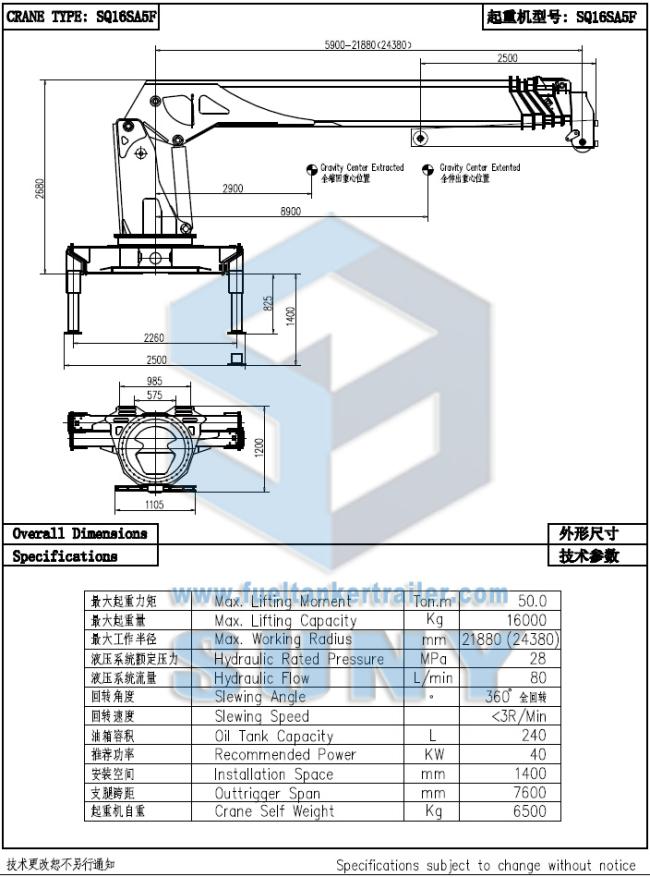

Following is drawing of the SYSQ16SA6 folding arm truck crane ( Which include detailed specification on it
