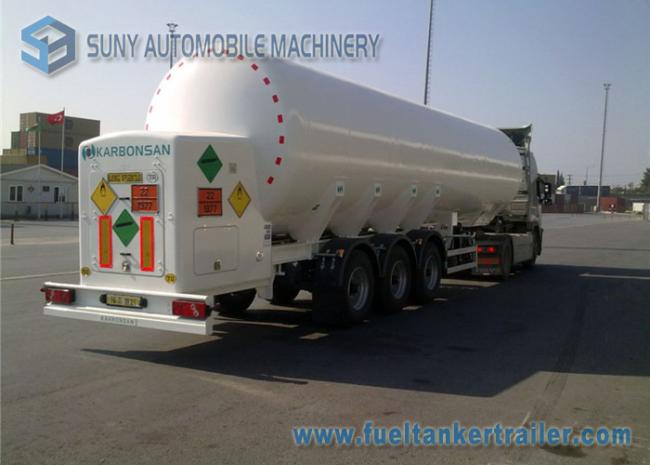

3 Axle 25 Ton LPG Propane Gas Tanker Trailer 13000*2500*3990mm

Price Negotiable
Price: FOB Shanghai: 385000-45000 usd/unit
MOQ: 1 unit
Delivery Time: 35-45 days
Brand: SUNY
Product Description

13 M 3 Axle 59.52 M3 25 Ton LPG Propane Gas Tanker Trailer



Description:



1. 59.52 M3 13 M 3 Axles 25 Ton LPG Propane Gas Tanker Trailer

2. truck wheelbase: 7230 + 1310 + 1310 mm, 12 tires;

3. propane gas tanker truck capacity: 59.52 m3, 59.52 cbm, 59200 L, about 25 T, 25000 kg

4. propane gas tanker truck dispenser: optional



Applications:



1. We manufacture tanks and vessels required for storage and transportation tanks of various liquids and gases like LPG, PROPANE, PROPYLENE, AMMONIA, LIQUID CARBON DIOXIDE, CHLORINE, HYDROGEN, NITROGEN, OXYGEN, ARGON, SULPHUR DIOXIDE, BUTADINE, ETHYLENE OXIDE AND OTHER GASES, in a wide range of various capacities for use in domestic, industrial and transportation sectors.

2. The manufacturing of these tanks requires special expertise, technology and strict quality control measures.

3. These tanks are manufactured confirming to various design standards like ASME SECT VIII DIV I & II, AD-MERKBLATTER, PD5500, IS2825 and under the stagewise inspection of various third party inspection agencies like DNV, BVIS, TUV, LLOYDS, PDIL and others.

4. We also manufacture a wide range of trucks, trailers, as well as machineries to meet different customers' demand all around the world.



Description:



59.52cbm 25ton 3 axle LPG semi trailer

Name

25 ton 3 axle LPG semi trailer

Model

SY9400GYQA

Overall dimension length/width/height ( mm )

13000 *2500 * 3990

tank dimension length/diameter ( mm )

12837 * 2498

tank straight length ( mm )

11485

Total Volume ( m3 )

59.52

Medium

Liquefied Petroleum Gas

Gross Vehicle Mass ( kg )

40000

Curb weight ( kg )

15000

Rated load ( kg )

25000

Number of Axles

3

F/R Axle load ( kg )

_/24000 ( Triaxial )

Wheel base ( mm )

7230 + 1310 + 1310

Rear track base ( mm )

1840 / 1840 / 1840

Approach/Departure Angle ( ° )

_ / 20

F/R Suspension ( mm )

_ / 1540

Tyre type

12R22.5 12PR, 12pcs plus one spare tire

Pieces of spring

_ / 7 / 7 / 7

Tank Body Material

Q235 carbon steel

Color

Optional

Semi trailer tail clearance

540 mm

Standard configuration

one outlet, double loading and unloading, double valve box, double tool box, safe valves, temperature gauge, pressure gauge, emergency cut-off valves, 13T BPW axle, 12R22.5 12PR, one spare tire, JOST outrigger, JOST traction pin, fire bottle, anti-static ground tape, iron splash guard, ABS
