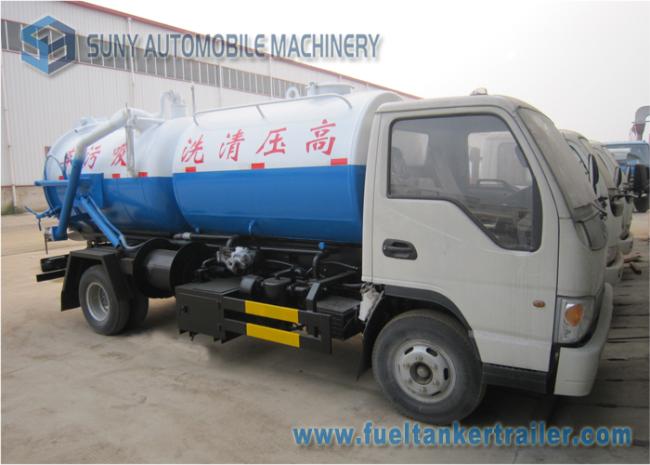

JAC 6000 L 141hp Vacuum Tank Truck Water Cleaning Tank Truck
JAC 6000 L 141hp Vacuum Tank Truck Water Cleaning Tank Truck
Applications:
1. Dredging and cleaning of sewer pipeline and gutter.
2. Cleaning of building outer wall.
3. Other cleaning work.
4. Street flushing, chemical and water-spraying
5. Bring underground cables and pipes to the surface
Competitive Advantage:
1. Equipped with special vacuum pump, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment, Time for full suction<5min
2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.
4. The diesel engine ( air compressor unit ), providing compressed air.
Specifications:
|
Vehicle Description |
|||||
|
Vehicle model |
Sewage suction truck |
Overall dimensions ( mm ) |
6860*2040*2800 |
||
|
GVW ( kg ) |
Appro×8495 |
Fact loading capacity ( L ) |
6000 |
||
|
Mass in working order ( kg ) |
Appro×5300 |
Max. Speed ( km/h ) |
90 |
||
|
Chassis Description |
|||||
|
Chassis Model |
HFC1081K2F |
||||
|
Cab |
Standard cabin with left hand drive |
||||
|
Color |
Optional |
||||
|
Allowable person in cab |
2/3 |
||||
|
Wheel base ( mm ) |
3800 |
||||
|
Front/Rear track base ( mm ) |
1880/1800 |
||||
|
Front/Rear overhang ( mm ) |
1850/2370 |
||||
|
Number of axles |
2 |
||||
|
Axle |
Front axle |
3060 |
|||
|
Rear axle |
5435 |
||||
|
Traction system |
4*2 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Full air |
||||
|
Electric system |
24V |
||||
|
Transmission |
5speed |
||||
|
Spring plate |
9/6+6 |
||||
|
Tire specification |
8.25-16 14PR |
||||
|
Tire quantity |
6+1 |
||||
|
Engine Description |
|||||
|
Engine model |
ISF3.8s4141 |
||||
|
Emission standard |
Euro 4 |
||||
|
Exhaust/output |
3760 ml/105 kw |
||||
|
Horse power |
141hp |
||||
|
Up-parts Description |
|||||
|
Sewage sludge Tank Dimension ( mm ) |
φ1400×2150 |
||||
|
Water Tank Dimension ( mm ) |
φ1400×2000 |
||||
|
Standard Equipment |
Equipped with high-power vacuum suction sewage pump. Equipped with lifting function, and double hydraulic cylinder, rear cover can hydraulic opening with self-flowing valve. Equipped with power take off, transmission shaft, pipe network, sewage pipe for observing and cleanout equipment. |
||||
|
Working Condition: |
1,Altitude: 0-4500 m 2,Temperature: -350 C~+450 C 3,Relative humidity: 80% 4,Wind force: ≤8 degree |
||||
