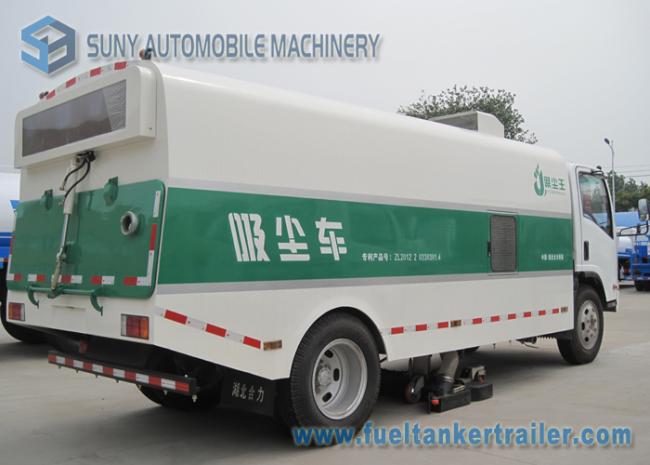

Dust Sunction Isuzu Sanitation Truck , 6 Wheels 4 X 2 3500KG Road Cleaning Truck
Dust Sunction Isuzu Sanitation Truck , 6 Wheels 4 X 2 3500KG Road Cleaning Truck
Product Description:
Pickup head is the key component of street vacuum sweeper,which is disigned to pick up paticles efficiently from road surface and send them to dust collection hopper smoothly. The particle removal perfomance of the pickup head is the most important index for a street vacuum sweeper.Many researches have been performed on estimating the particle removal performance of street sweeping and washing for controlling anbient total suspended particles bu experiments, which indicated that the street sweeping and washing process was effective at removing dust and silt from urban roads.
1. Product Parameter:
|
Products Technical Specification |
||
|
Type |
Dust suction truck |
|
|
Vehicle Description |
||
|
Overall dimensions(mm) |
7320×2250×2800 |
|
|
G.V.W (kg) |
7060 |
|
|
Curb weight(kg) |
4200 |
|
|
Max speed (Km/h) |
105 |
|
|
Engine Description |
||
|
Engine model |
4HK1-TCG40 |
|
|
Engine Type |
4 cylinders, straight in-line, exhaust turbo charging system to improve engine power |
|
|
Maximum power |
139kw/190hp |
|
|
Displacement (lit) |
5193 |
|
|
Chassis Description |
||
|
Chassis model |
QL11019MARY |
|
|
Wheel base(mm) |
4475 |
|
|
F/R track base(mm) |
1680/1650 |
|
|
F/R overhang(mm) |
1110/1735 |
|
|
Approach/Departure angle(°) |
24/15 |
|
|
Spring plate |
8/10+6 |
|
|
Driving Type |
4×2,left hand drive |
|
|
Tyre&Quantity |
8.25-20&6+1 |
|
|
Up-parts Description |
||
|
Max sweeping width(mm) |
3000 |
|
|
Sweep efficient |
More than 98% |
|
|
Sweep speed(Km/h) |
5-20 |
|
|
Hydraulic pressure(Mpa) |
12 |
|
|
Suction cap ground clearance in working(mm) |
5-10 |
|
|
Dustbin capacity(m3) |
8 |
|
|
Max operating capacity |
75000 square meters per hour |
|
|
The biggest diameter of suction granularity(mm) |
Less than 50
|
|
