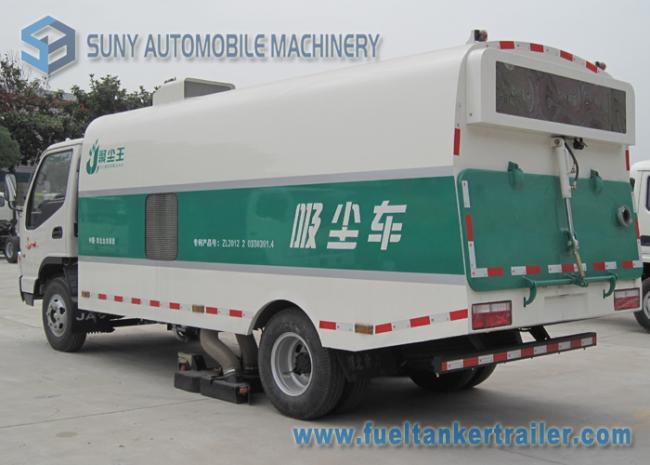

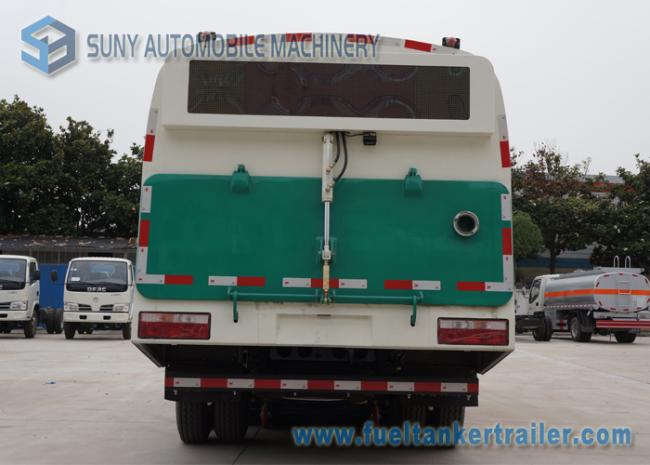

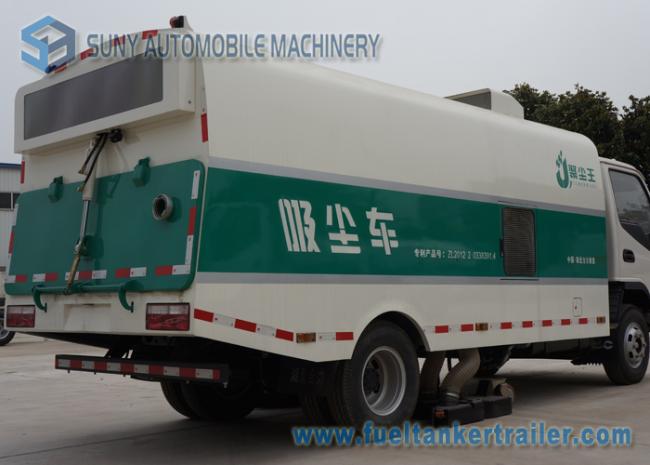

JAC 6M3 4 X 2 3000KG Street Sweeper Truck Reliable With 4 Cylinders
JAC 6M3 4 X 2 3000KG Street Sweeper Truck Reliable With 4 Cylinders
Product Description:
As the particle removal performance for street vacuum sweeper varies based on sweeping technology, operating conditions, sweeping frequency, street dirt loading and particle size distribution, it is necessary to develop a repeatable and reliable method to calculate the particle removal performance of pickup head for a street vacuum sweeper. In order to evaluate the particle removal performances of pickup head , engineers generally concentrate on two parameters, the sweeper-traveling speed and the pressure drop across the pickup head.
1. Product Parameter
|
Products Technical Specification |
||
|
Type |
Dust suction truck |
|
|
Vehicle Description |
||
|
Overall dimensions(mm) |
6640×2120×2620 |
|
|
G.V.W (kg) |
5800 |
|
|
Curb weight(kg) |
5300 |
|
|
Max speed (Km/h) |
105 |
|
|
Engine Description |
||
|
Engine model |
CY4102-C3D |
|
|
Engine Type |
4 cylinders, straight in-line, exhaust turbo charging system to improve engine power |
|
|
Maximum power |
80kw/108hp |
|
|
Displacement (lit) |
3856 |
|
|
Chassis Description |
||
|
Chassis model |
HFC1061K1T |
|
|
Wheel base(mm) |
3815 |
|
|
F/R track base(mm) |
1665/1525 |
|
|
F/R overhang(mm) |
1085/1740 |
|
|
Approach/Departure angle(°) |
24/15 |
|
|
Spring plate |
8/6+5 |
|
|
Front / rear axle (T) |
2.6/4.7 |
|
|
Driving Type |
4×2,left hand drive |
|
|
Tyre&Quantity |
7.50-16&6+1 |
|
|
Up-parts Description |
||
|
Max sweeping width(mm) |
2800 |
|
|
Sweep efficient |
More than 96% |
|
|
Sweep speed(Km/h) |
5-20 |
|
|
Hydraulic pressure(Mpa) |
12 |
|
|
Suction cap ground clearance in working(mm) |
5-10 |
|
|
Dustbin capacity(m3) |
6 |
|
|
Max operating capacity |
45000 square meters per hour |
|
|
The biggest diameter of suction granularity(mm) |
Less than 50 |
|
