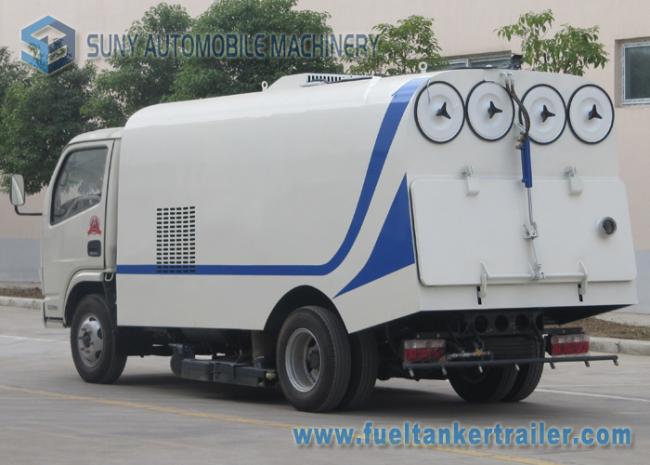

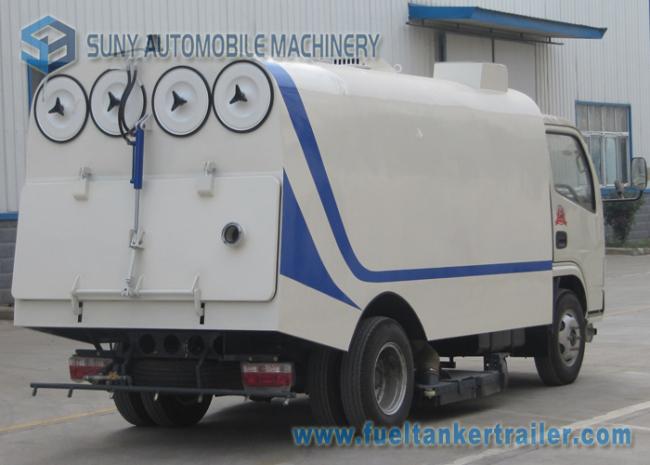

Dongfeng 3500L Road Sweeper Truck Small 4 X 2 500KG 66KW 90HP
Dongfeng 3500L Road Sweeper Truck Small 4 X 2 500KG 66KW 90HP
Product Description:
Research on particle characteristics on urban road surface reveals that the particle size distribution is not consistent with the pollution distribution, and pollutant are typically associated with the smaller size particles. Since pollutants are the main function for street vacuum sweeper, a more accurate method of evaluating the particle removal performance of street vacuum sweeper is using grade efficiency.
1. Product Parameter
|
Products Technical Specification |
||
|
Type |
Dust suction truck |
|
|
Vehicle Description |
||
|
Overall dimensions(mm) |
5995×1990×2590 |
|
|
G.V.W (kg) |
4495 |
|
|
Curb weight(kg) |
3815 |
|
|
Max speed (Km/h) |
95 |
|
|
Engine Description |
||
|
Engine model |
YC4FA90-40 |
|
|
Engine Type |
4 cylinders, straight in-line, exhaust turbo charging system to improve engine power |
|
|
Maximum power |
66kw/90hp |
|
|
Displacement (lit) |
2982 |
|
|
Chassis Description |
||
|
Chassis model |
DFA1041SJ35D6 |
|
|
Wheel base(mm) |
3300 |
|
|
F/R track base(mm) |
1506/1466 |
|
|
F/R overhang(mm) |
1032/1663 |
|
|
Approach/Departure angle(°) |
19/13 |
|
|
Spring plate |
6/6+5 |
|
|
Front / rear axle (T) |
1.8/2.7 |
|
|
Driving Type |
4×2,left hand drive |
|
|
Tyre&Quantity |
7.00-16&6+1 |
|
|
Up-parts Description |
||
|
Max sweeping width(mm) |
2800 |
|
|
Sweep efficient |
More than 96% |
|
|
Sweep speed(Km/h) |
5-20 |
|
|
Hydraulic pressure(Mpa) |
12 |
|
|
Suction cap ground clearance in working(mm) |
5-10 |
|
|
Dustbin capacity(m3) |
4.5 |
|
|
Max operating capacity |
45000 square meters per hour |
|
|
The biggest diameter of suction granularity(mm) |
Less than 50 |
|
