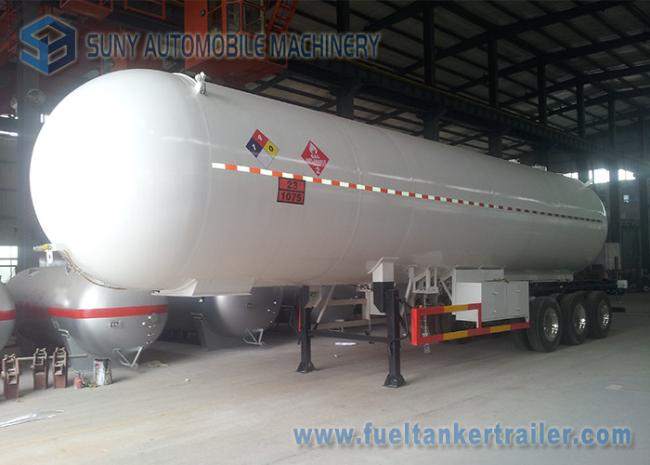

59520L 25T 3 Axles Semi Tanker Trailers 12 Wheels LPG Gas Tanker

d. Design pressure: 1.61-1.77Mpa


SUNY LPG tank design and produce:

1 )  LPG tank Designing pressure:0.7 ~ 2.16Mpa  Designing temperature:500C

2 )  The various types LPG tank is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.

3 )  We inspect the quality of lpg tank product strictly,ensure that A and B type of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.

4 )  There are domestic or imported safety accessories with high quality ,its matching is complet for lpg tank.

5 )  The anticorrosion coating of LPG tank adopt the following process, sandblast, spray painting ,purging and so on.

2. 59520L LPG tank truck specification:


Design and production standard 1.TSG R0005-2011<Supervision regulation on safety technology for stationary pressure vessel> 2.JB/T19905-2005 < LPG transported tank truck>, GB150 1~4-2011<pressure vessels>
LPG tank truck specification
Filling gas		LPG (420kg/M3)
Tank capacity		59520L
Loading weight		25000kg
Overall dimension		13000*2500*3990mm
Axles		BPW brand & three axles &12T
Tire		12.00R22.5 & 12+1units
Pin		Jost Brand & 50# or 90#
Loading leg		Jost Brand & 25T
Suspension		Leaf spring suspension
LPG tank specification
Tank material		Q345R
Tank Designed thickness	End cover	12mm
	Tank body	12mm
Tank dimension		Dia2475mm*length 12900mm
Tank trailer weight		15000kg
Designed pressure		1.77Mpa
Testing water pressure		2.66MPa
Air tight test pressure		1.77Mpa
Heat treatment		Wholly get rid of stress
Rust thickness		1mm
Design temperature		500C
Use Years		Ten years
other equipment		1.double tool box 2.double valve box 3.double Emergency Cut-off Valve 4.single pipe liquid out 5.single side loading and unloading 6.With safe valve, Liquid level meter, Emergency cutting valve, Inlet and outlet
