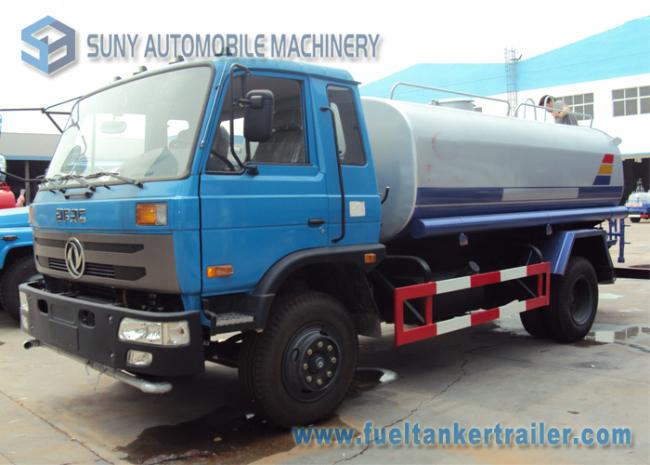

6000 L - 8000 L Sanitation Water Tanker Truck Dongfeng Chassis 4*2 Drive
6000 L - 8000 L Sanitation Truck Dongfeng Chassis 4*2 Drive
Description & application:
1- The water truck is for city environmental sanitation management, muicipal road maintenance.
2- It can sprinkle the water to clean the road. And the monitor can spray water to clean other facility on the road.
3- It also can transport the water to the palce you want.
Competitive Advantage:
1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most competitive
4- best service ----- we cherish each customer and opportunity.
Specifications:
6000 L - 8000 L Water Tank Trucks Dongfeng Chassis 4*2 Drive
| Vehicle Description | |||
| Type | 4*2 water truck | Overall dimensions(mm) | 7120*2462*2710 |
| GVW (kg) | 11495 | Mass in working order (kg) | 4570 |
| Fact cubage | 5.67 | Max speed (Km/h) | 95 |
| Chassis Description | |||
| Cab | Single | Chassis Mod | EQ1110GLJ |
| Allowable Passengers In Cab | 3 | Air conditioner | Optional |
| Wheel base(mm) | 3950 | Number of axles | 2 |
| F/R track base(mm) | 1900/1800 | F/R overhang(mm) | 1250/1920 |
| Approach/Departure angle(°) | 33/22 | Spring plate | 8/11+8 |
| F/R axle-load | 3800/7695 | Type of fuel | Diesel |
| Tire specification | 9.00-20 | Tire quantity | 6 |
| Traction system | 4*2 | Operation control system | Steering wheel |
| Braking system | Air braking | Electric system | 24V |
| Engine Description | |||
| Engine model | YC6J180-30 | ||
| Exhaust/output | 6500/132 | Horse power | 180 |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. | ||
| Up-parts Description | |||
| Tank Capacity | 5-8m3 | ||
| Tank Description |
1. Shape:oval 2. Material:carbon steel 3.Thickness:5mm All water truck can be make water wagon for transporting drinkinrg wate. |
||
| Standard Equipment |
Equipped with front,rear, side sprinkler (sprinkling width>14m ) Equipped with rear working platform with water cannon which can be turned all-round (range>28m),can be adjusted into flinging, heavy rain,light rain,drizzle model, with security barrier. Equipped with Hangzhou Weilong pump(suction lift>6m) Equipped with fire valve, water valve, and filter gauze |
||
| Optional Equipment |
Shower ,pneumatic valve,Honda pump,tool box Optional other tire model |
||
| Production cycle | 7-15 days | ||
