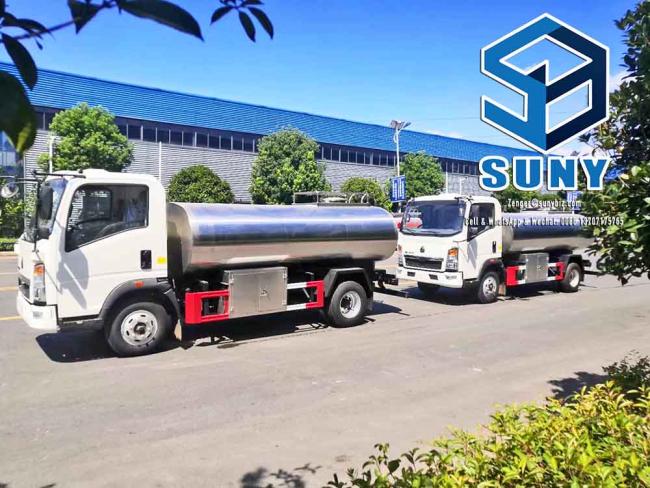

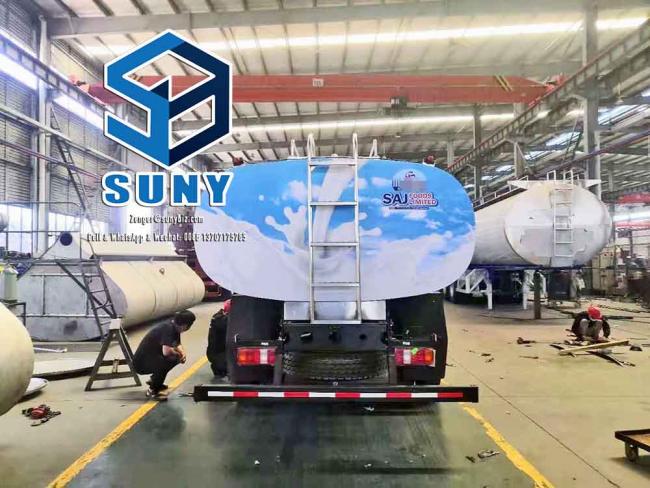

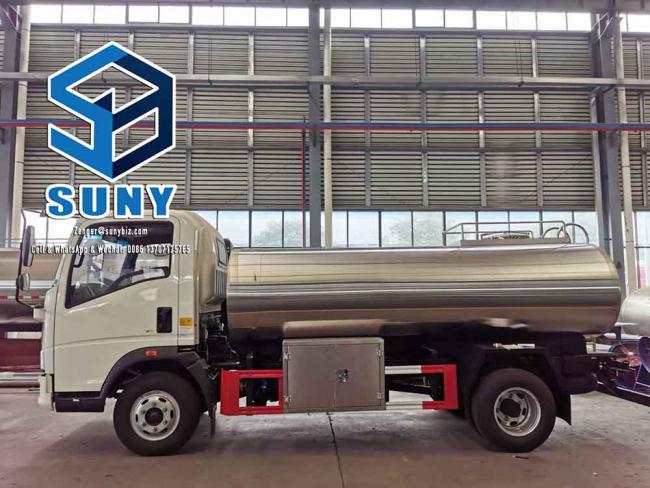

5000 L HOWO Smaller Stainless Steel Water Tanker Truck 4x2 Milk Tanker Transport Vehicle
5000 L HOWO Smaller Stainless Steel Water Tanker Truck 4x2 Milk Tanker Transport Vehicle
Description & application:
1- It also can transport the water to the place you want.
2- The water truck is for city environmental sanitation management, muicipal road maintenance.
3- It can sprinkle the water to clean the road. And the monitor can spray water to clean other facility on the road.
Competitive Advantage:
1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most competitive
4- best service ----- we cherish each customer and opportunity.
5- 4 X 2 5000 L Water Tank Trucks 116 hp 2 Axles
5000 L HOWO Smaller Stainless Steel Water Tanker Truck 4x2 Milk Tanker Transport Vehicle:
| 4X2 WATER TRUCK SPECIFICATION | |
| Truck Model |
SY5104SYC HOWO 4X2 SS water tank truck |
| Cabin | One row Seat, Lift cabin,With radio,With A/C, left hand drive |
| Overall dimensions | 6000*2300*2400 mm |
| G.V.W | 6600 kg |
| Net weight | 2950 kg |
| Design load | 5000 kg |
| CHASSIS | |
| Model | ZZ1047 |
| Drive type | 4X2 |
| Wheelbase | 3360 mm |
| Number of axles | 2 |
| Axle-load |
Front axle: 2.4 Ton Rear axle: 4.2 ton |
| Tire ( No. & specification) | 7.00R16 (radial tire), 6pcs+1pc |
| Max speed (Km/h) | ≥ 90 km/h |
| Brake system | Air braking |
| Steering | Power steering |
| Transmission | 5 gears, Mechanical 5 forward + 1 reserve |
| ENGINE | |
| Engine model | YN4102QBZL (EUR II emission) |
| Manufacturer | YUNNEI CHINA, |
| Fuel type | Diesel |
| No. of cylinder / valve | 4 / 4 |
| Cylinder arrangement form | In-line |
| House power | 116 hp / 85 kw |
| Exhaust | 3760 ml |
| Rated speed | 3000 rpm |
| Max torque | 290 N.m / 1800~2100 RPM |
| Type | Naturally aspirated |
| WATER TANK | |
| Tank capacity | 5000 liters |
| Tank shape | Ellipse shape |
| Tank material | Stainless steel 304, 4 mm thickness |
| Standard equipment | With water pump, fire valve, water valves, water pipes |
| Sprinkler system | Nil. |
| Tank shape | Ellipse shape |
| Sprinkler system | Extra charge opting |
| Auxiliary engine | Extra charge opting |
| PAINT | |
| Tanker outer |
Original SS surface, or Blasting, with epoxy prime, and final painting (final color optional) |
| Tanker inner | Ordinary SS |
