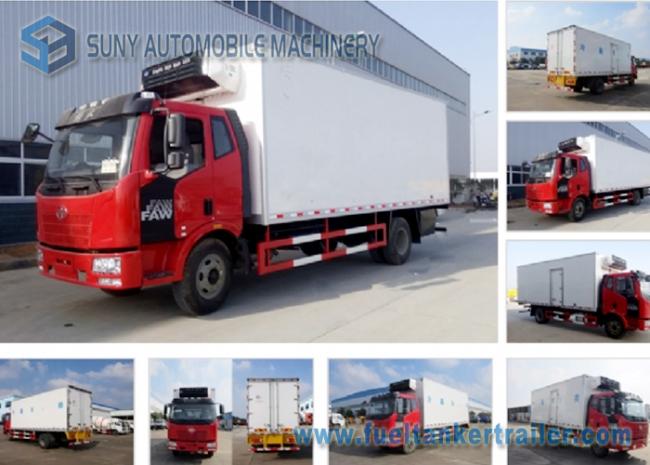

180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic
180 HP FAW J6 4x2 Refrigerated Box Truck Load 10T Box Volume 30 Cubic
4x2 FAW Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)
Thickness: FRP inside & outside of the van, polyurethane as the insulation.
Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.
Temperature reaches from -18°C to 5°C
Total capacity: approx. 8000 KG ~ 10000 KG ~ 12000kg ~ Max .15000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional
| Products Technical Specification | ||||
| Brand-Series | FAW | |||
| Product Name | 4x2 Refrigerated truck | |||
| Fuel type | Diesel | |||
| Emission Standard | Euro 3 | |||
| Cabin | Half row , With A/C | |||
| Chassis standard configuration | ||||
| Chassis model | CA1160 | |||
| Whole vehicle main dimensions (mm) | Overall dimensions (L×W×H) | 8500*2500*3850 | ||
| Cargo body dimensions (L×W×H) | 5450*2400*2560 | |||
| Wheel base | 4700 | |||
| Front / Rear track base | 1914 / 1847 | |||
| Front / Rear overhang | 1400 / 2550 | |||
| Weight data (kg) | G.V.W | 16000 | ||
| Curb weight (chassis) | 7570 | |||
| Max payload | 8000~ 15000 | |||
| Whole vehicle main performance |
Max. speed (km/h) | 90 | ||
| Max. slope of climb (%) | 30 | |||
| Engine | Model | BF6M2012-18E4 | ||
| Maximum power | 139 KW / 180 HP | |||
| Number of cylinders | 4 | |||
| Displacement (lit) | 6.06 | |||
| Engine Manufacturer | FAW | |||
| Gear box | Number of gears | 6 forward gears & 1 reverse | ||
| Axle | Front / Rear Load capacity(ton) | 5 / 10 | ||
| Suspension | Front / Rear Spring plate | 10/12+8,13/12+8,12/12+8 | ||
| Steering Wheel | left/right hand drive | LHD | ||
| Brake system | Service brake | Ail braking | ||
| Electric device | Voltage (V) | 24 | ||
| Tire & Quantity | 10. 00R 20 & 6+1 | |||
| Cargo Body Standard Configuration | ||||
| Cargo Body Size | (L×W×H) mm | 5450*2400*2560 | ||
| Cargo Body Material | FRP inside & outside of the van, polyurethane as the insulation | |||
| Cargo body thickness | 80mm | |||
| Back Door | Single door | |||
| Side door | Optional | |||
| Refrigeration systems | Equipped with DT-500 | |||
| Temperature Range | Normal temperature,refrigeration temperature reached -18C to 0°C | |||
| Others |
Stainless Steel door frame, Stainless steel corrugated floor, Mark lamp at the four (4) corners f the body, Room lamp will be provided inside the cabin. |
|||
|
||||
