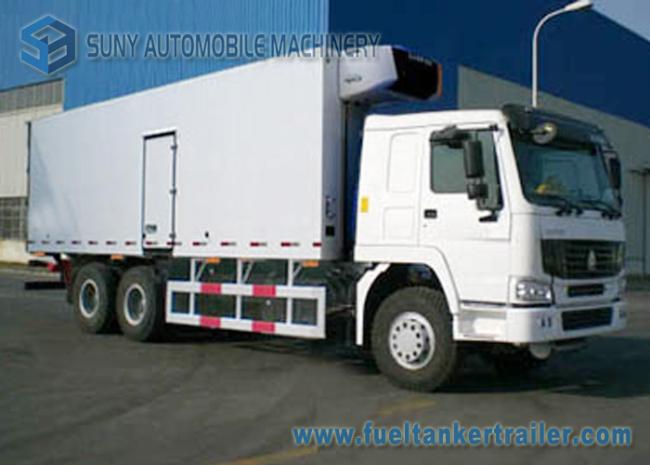

30 T Refrigerated Box Truck CNHTC Sinotruk HOWO 6x4 Heavy 336 HP
30 T Refrigerated Box Truck CNHTC Sinotruk HOWO 6x4 Heavy 336 HP
6X4 SINOTRUK HOWO Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)
Thickness: FRP inside & outside of the van, polyurethane as the insulation.
Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.
Temperature reaches from -18°C to 0°C
Total capacity: approx. 20000 KG ~ 25000 KG ~ Max .35000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional
| Products Technical Specification | |||
| Product Name | 6*4 Refrigerator Truck | ||
| Brand-Series | SINOTRUK-HOWO | ||
| Chassis Model | ZZ1257 | ||
| Emission Standard | Euro 2 | ||
| Fuel type | Diesel | ||
| Cabin | HW76,with A/C,One sleeper | ||
| Whole vehicle main dimensions (mm) | Overall dimensions (L×W×H) | 9000*2545*3980 | |
| box dimensions | 6200*2420*2300 | ||
| Wheel base | 4025+1350 | ||
| Front overhang | 1500 | ||
| Rear overhang | 1945 | ||
| Min. ground clearance | 530 | ||
| Weight data (kg) | G.V.W | 25000 | |
| Curb weight (chassis) | 10880 | ||
| Max payload | 30000 | ||
| Whole vehicle main performance |
Max. speed (km/h) | 98 | |
| Max. slope of climb (%) | 30 | ||
| Engine | Model | WD615.95E | |
| Rated power (kw/rpm) | 247kw / 2200 | ||
| Displacement (L) | 9.726 | ||
| Number of cylinders | 6 | ||
| Max torque (N.m/rpm) | 1350/1600 | ||
| Intake type | Turbocharged,EGR | ||
| Transmission | model | HW15710 | |
| Number of gears | 10 forward gears & 2 reverse | ||
| Rear axle | / |
HC16 Central casting wheel reduction gear + single axle drive axle |
|
| Suspension | Front | 10- Leaf spring | |
| Rear | 12-leaf spring | ||
| Steering Wheel | left/right hand drive | LHD | |
| Brake system | Service brake | Dual-circuit air brake | |
| Electric device | Rated voltage | 24V | |
| Tyres & Quantity | 12.00-20 & 10+1 | ||
| Box Description | |||
| Box dimensions (mm) | 6200*2420*2300 | ||
| Box material | FRP inside & outside of the van, polyurethane as the insulation | ||
| Box thickness | 80 mm Optional 100mm | ||
| Back Door | hinged door | ||
| Side door | Optional | ||
| Refrigeration systems |
Equipped with DT-500S, NIDIAN THERMO, South korean Hanya Brand |
||
| Temperature Range | Normal temperature,refrigeration temperature reached -18°C to 0°C | ||
| Others |
Stainless Steel door frame,Stainless steel corrugated floor, Mark lamp at the four (4) corners f the body, Room lamp will be provided inside the cabin. |
||
