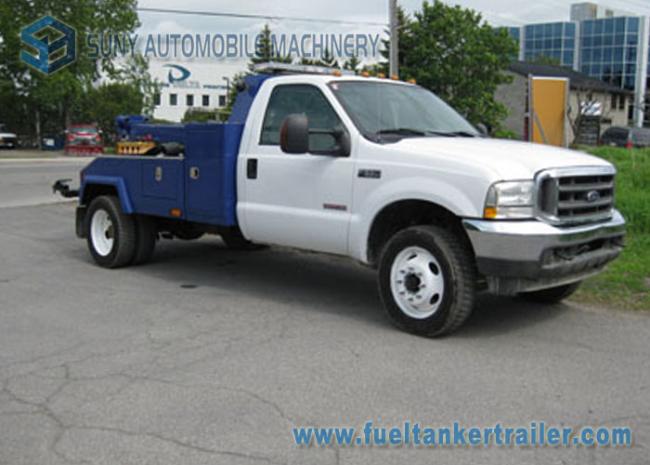

FORD Medium Duty Wrecker Tow Truck With 9 Ton Boom And 6 Ton Wheel Llift
FORD Medium Duty Wrecker IND 10 Tow Truck With 9 Ton Boom And 6 Ton Wheel Llift
Specifications
IND 10 Ten ton traditional wrecker with independently operated boom and wheel lift . Suitable for towing light duty trucks .
IND 10 Ten ton traditional wrecker with independent boom and wheel lift . Trucks like this have tow millions of vehicles over the years and the IND 10 aims to continue that tradition .
From the gas shock tool box doors to the standard complete wireless controls this wrecker will be the envy of every heavy driver . Keeping you rolling is our priority , so we have gone with all steel hydraulic lines and we have used only the best in cylinders , winches and steel . We have designed the IND 10 to work in any environment and it will fill the gap in your fleet .
As with all our Tow Trucks , customization is the order of the day and we will build your wrecker the way you want it . Do not hesitate to inquire ; standard and customized wreckers are surprisingly inexpensive .
Some optional equipment may be shown .
All ratings are based on structural and design factors only . Vehicle chassis capacity and capabilities can vary significantly , affecting the overall performance and rating of the unit . All chassis specifications are minimums , heavier specifications may be required depending on chassis and equipment weights . Please contact your nearest distributor for additional information .
Our Tow Trucks reserves the right to change , improve or modify products , which may change the specifications , models and features availability at any time without notice and without obligation . Please contact your nearest distributor for additional information .
FORD Medium Duty Wrecker IND 10 Tow Truck With 9 Ton Boom And 6 Ton Wheel Llift
BOOM SPECIFICATIONS
| Boom | Two Stage |
| Boom Rating | 20 , 000 lbs ( 9 , 071 kg ) on first stage |
| Boom Rating | 6 , 000 lbs ( 2 , 722 kg ) on 2nd Stage at 30 degrees |
| Boom Elevation | 39 degrees maximum |
| Maximum Hook Height | 156 ( 3962 mm ) |
WINCH SPECIFICATIONS
| Winch Capacity | 2 x 12 , 000 lbs ( 5 , 433 kg ) |
| Winch Type | Worm Gear |
| Steel Cable | 2 x ½ x 100 ' |
| Special Features | Free Wheel Manual Tensioner |
WHEEL LIFT SPECIFICATIONS
| Lift Rating at Full Extension | 8000 lbs ( 3628 kg ) on Forks |
| Fully Retracted Capacity | 12 , 000 lbs ( 5443 kg ) |
VEHICLE RECOMMENDATIONS
| Suggested Minimum GVW | 18 , 000 lbs ( 11 , 440 kg ) |
| Cab to Axle Distance | 60 " to 132 Cab to Rear Axle ( 2134 mm to 3353 mm ) |
STANDARD FEATURES INCLUDE :
- Steel body
- Dual 8 , 000lbs planetary winches
- Manual spring tensioner
- Two stage boom
- Independent underlift
- Dual manual controls
- 3 sets of frame forks
- Frame fork adapters
- Weather stripping on all tool boxes
- Sling
OPTIONS AVAILABLE :
- Custom toolbox configurations
- In - cab controls
- Custom paint and graphics
- Aluminum dress up kit
- Additional frame forks
- Custom attachments
- Heavy duty wheel lift
- Full installation services
- Extended warranty
