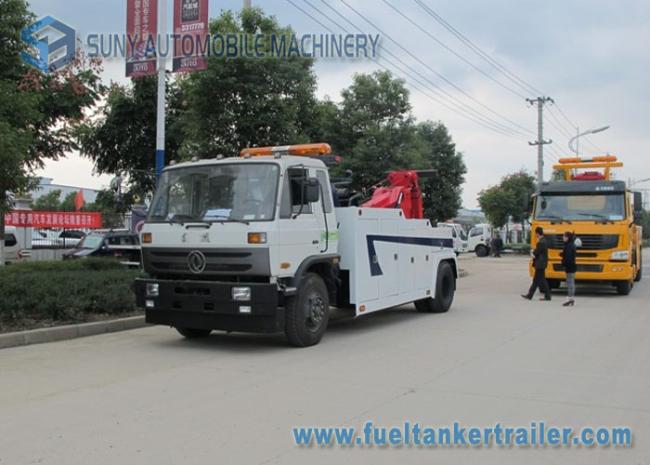

Dongfeng 153 Heavy Duty Road Wrecker Truck INT 16 Recovery Truck Body 16 Ton Boom
Dongfeng 153 Heavy Duty Road Wrecker Truck INT 16 Recovery Truck Body 16 Ton Boom
Description :
SunyTow Trucks ’ INT - 16 is the best of both worlds . You can handle big trucks without having to ignore light duty vehicles and passenger cars . This unit will quickly become your favorite truck due to the speed and flexibility to tow just about everything . It ’ s a money maker any way you look at it .
Our INT - 16 is over - built to ensure durability and long - life ; this will protect your investment and keep you on the road longer and hauling more vehicles faster . Owners and fleet operators alike will quickly discover that this light duty wrecker is the best value that ' s available on the market today .
As with all Suny Tow Trucks , customization is the order of the day and we ' ll build your wrecker the way you want it . Don ' t hesitate to inquire , standard and customized wreckers are surprisingly inexpensive .
Specifications :
Dongfeng 153 Heavy Duty Road Wrecker INT 16 Recovery Truck Body 16 Ton Boom
| UNDERLIFT SPECIFICATIONS | |
| Tow Rating | 14 . 5 ton ( 32 , 000 lbs ) |
| Retracted capacity on forks | 5 . 4 ton ( 12 , 000 lbs ) |
| Retracted distance to the forks | 874 mm ( 34 " ) |
| Extended capacity on forks | 3 . 8 ton ( 8 , 500 lbs ) |
| Extended distance to the forks | 2897 mm ( 114 " ) |
| Extended capacity on wheel scoops | 2 . 7 ton ( 6 , 000 lbs ) |
| Tilt angles | - 8 ° |
| BOOM SPECIFICATIONS at 23 ° | |
| Retracted capacity ( at 35 ° ) | 16 ton ( 35 , 200 lbs ) |
| Extended capacity ( at 35 ° ) | 8 ton ( 17 , 600 lbs ) |
| Maximum Lift angle | 36 ° |
| Maximum hook height | 4256 mm ( 168 " ) |
| Reach past tailboard | 1663 mm ( 65 " ) |
| WINCH SPECIFICATIONS | |
| Quantity | 2 winches |
| Pulling force ( on 1st layer ) | 10 ton ( 22 , 000 lbs ) |
| Winch Type | Planetary or Worm gear |
| Cable length | 16 mm x 60 m ( 5 / 8 " x 200 ' ) |
| CHASSIS REQUIREMENTS | |
| FA axle ( s ) weight ( min ) | 5 . 4 ton ( 12 , 000 lbs ) |
| RA axle ( s ) weight ( min ) | 10 . 4 ton ( 23 , 000 lbs ) |
| Clear CA | 3048 mm ( 120 " ) |
| Recomended GVW | 12 ton ( 26 , 500 lbs ) to 13 . 6 ton ( 30 , 000 lbs ) |
| Recomended frame height | 965 mm ( 38 " ) |
| Recomended Tire size | max 255 / 70R22 . 5 |
- 3048 mm ( 120 " ) CA standard steel body
- Frame fork holders
- Frame fork racks
- Chain racks
- 4 sets of frame forks
- Chrome door handle
- Driver and passenger side manual controls
- Wheel scoops
- Safety chains
- Wireless Remote Control
- 609 mm ( 24 " ) , 762 mm ( 30 " ) , 914 mm ( 36 " ) , 1219 mm ( 48 " ) , 1828 mm ( 72 " ) tunnel box
- Custom length tunnel box
- Extra frame forks
- Wheel lift receivers for single / double tires
- Full recovery tool package
- Custom storage system
- Aluminum / Composite body
- European body style
- Gravel guard undercoating finish
- Front push bumper
- XP , X - shape side puller
- Chrome hand rails
- In cab controls
- European style low under lift
- Full size LED light bar
- LED - working lights , strobe lights , lights inside toolbox
- Custom painting
- Installation services and extended warranty
- Tow operators education & training
