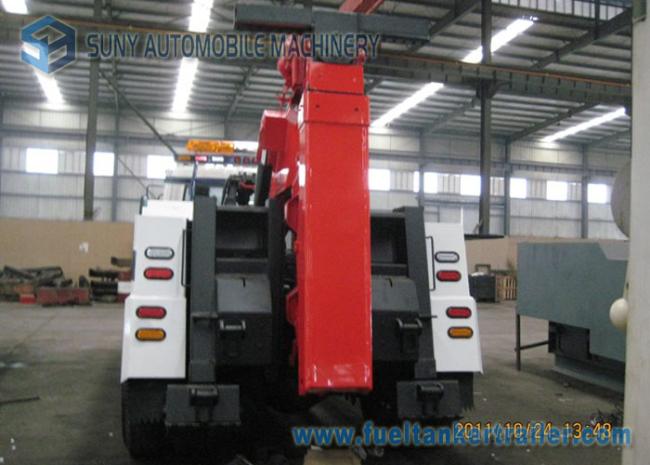

INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
Description :
Combining maneuverability and heavy capacity, the INT - 30 is one of the best units to work with everyday , anywhere . This unit is designed for owners and operators who work every day in very tight environments .
Our INT - 30 is over - built to ensure durability and long - life ; this will protect your investment and keep you on the road longer and hauling more vehicles faster . Owners and fleet operators alike will quickly discover that this light duty wrecker is the best value that ' s available on the market today .
As with all SUNY Tow Trucks , customization is the order of the day and we ' ll build your wrecker the way you want it . Don ' t hesitate to inquire , standard and customized wreckers are surprisingly inexpensive .
Specifications :
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
| UNDERLIFT SPECIFICATIONS | |
| Tow Rating | 25 ton ( 55 , 000 lbs ) |
| Retracted capacity on forks | 11 . 3 ton ( 25 , 000 lbs ) / 9 . 5 ton ( 21 , 000 lbs ) |
| Retracted distance to the forks | 1634 mm ( 64 " ) / 1701 mm ( 67 " ) |
| Extended capacity on forks | 6 . 8 ton ( 15 , 000 lbs ) / 5 ton ( 11 , 000 lbs ) |
| Extended distance to the forks | 3466 mm ( 136 " ) / 3657 mm ( 144 " ) |
| Tilt angles | - 9 ° |
| BOOM SPECIFICATIONS at 34 ° | |
| Retracted capacity | 30 ton ( 66 , 100 lbs ) |
| Extended capacity | 15 ton ( 33 , 000 lbs ) |
| Extended capacity | 34 ° |
| Maximum hook height | 5746 mm ( 226 " ) |
| Reach past tailboard | 3132 mm ( 123 " ) |
| WINCH SPECIFICATIONS | |
| Quantity | 2 winches |
| Pulling force ( on 1st layer ) | 10 ton ( 22 , 000 lbs ) |
| Winch Type | Planetary |
| Cable length | 16 mm x 60 m ( 5 / 8 " x 200 ' ) |
| CHASSIS REQUIREMENTS | |
| FA axle ( s ) weight ( min ) | 5 . 4 ton ( 12 , 000 lbs ) |
| RA axle ( s ) weight ( min ) | Single 10.4 ton ( 23 , 000 lbs ) or Tandem 2 x 9 ton ( 20 , 000 lbs ) |
| Clear CA | 3962 mm ( 156 " ) |
| Recomended GVW | 15 ton ( 33 , 000 lbs ) |
- 3962 mm ( 156 " ) CA standard steel body
- Frame fork holders
- Frame fork racks
- Chain racks
- 4 sets of frame forks
- Chrome door handle
- Driver and passenger side manual controls
- Safety chains
- Wireless Remote Control
- 20 ton ( 44 , 000 lbs ) winches
- 609 mm ( 24 " ) , 762 mm ( 30 " ) , 914 mm ( 36 " ) , 1219 mm ( 48 " ) , 1828 mm ( 72 " ) tunnel box
- Custom length tunnel box
- Extra frame forks
- Wheel lift receivers for single / double tires
- Full recovery tool package
- Custom storage system
- Aluminum / Composite body
- European body style
- Gravel guard undercoating finish
- Front push bumper
- XP , X - shape side puller
- Chrome hand rails
- A - arm style side winches
- In cab controls
- European style low under lift
- Full size LED light bar
- LED - working lights, strobe lights , lights inside toolbox
- Custom painting
- Installation services and extended warranty
- Tow operators education & training
