5 T - 8 T 4x2 Dongfeng Refrigerator Van Truck 88 KW / 120 Hp LHD / RHD
Price:
USD 10,000 ~ 25,000 / Unit
MOQ:
1 unit
Delivery Time:
15 ~ 20 working days
Brand:
SUNY
Product Description
5 T - 8 T 4x2 Dongfeng Refrigerated Box Truck 88 KW / 120 Hp LHD / RHD
Box materials Corrugated iron , Optional Stainless steel , aluminum, insulation materials , Refrigerated trucks
Drive Type : 4x2 4x4 6x4 6x6 8x4 8x8
Load Capacity : 1T , 2T , 3T , 4 T , 5 T , 6 T , 7 T , 8 T
| Products Technical Specification | ||
| Chassis Brand | Dongfeng | |
| Product Name | 4*2 Van Truck | |
| Fuel type | Diesel | |
| Emission Standard | Euro 3 | |
| Cabin | Single row Optional A/C | |
| Whole Vehicle main dimensions (mm) |
Overall dimensions (L×W×H) | 6995*2450*3400 |
| Van dimensions | 5150*2300*2250 | |
| Wheel base | 3800 | |
| Front overhang | 1130 | |
| Rear overhang | 2056 | |
| Min. ground clearance | 510 | |
| Weight data (kg) | G.V.W | 9400 |
| Curb weight (chassis) | 4300 | |
| Max payload | 5000 ~ 8000 | |
| Whole vehicle main performance |
Max. speed (km/h) | 95 |
| Max. slope of climb (%) | 30 | |
| Engine | Model | CY4102-E3C |
| Maximum power | 88kw / 120hp | |
| Number of cylinders | 4 | |
| Displacement (L) | 3.856 | |
| Engine Manufacturer | Dongfeng Chaoyang Diesel Engine Co.,Ltd., | |
| Gear box | Number of gears | 5 forward gears & 1 reverse |
| Axle | Drive axle | 4.8T |
| Suspension | Front | 8- Leaf spring |
| Rear | 10+7-leaf spring | |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Air braking |
| Electric device | Rated voltage | 24V |
| Tyres & Quantity | 8.25-00 & 6+1 | |
| Up-parts Description | ||

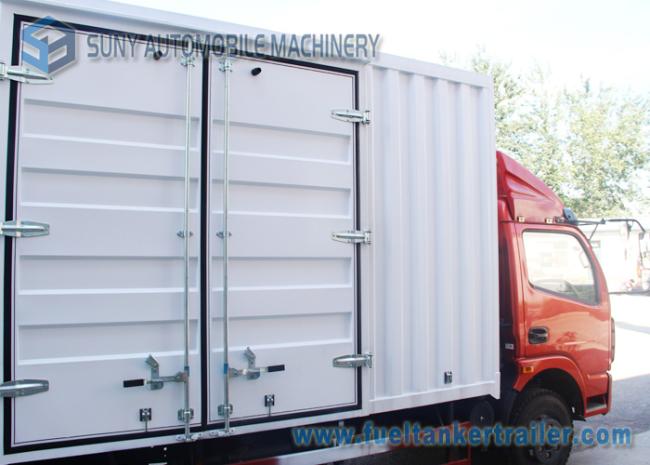

| Van description | Equipped with rear door , Box materials Corrugated iron | |
