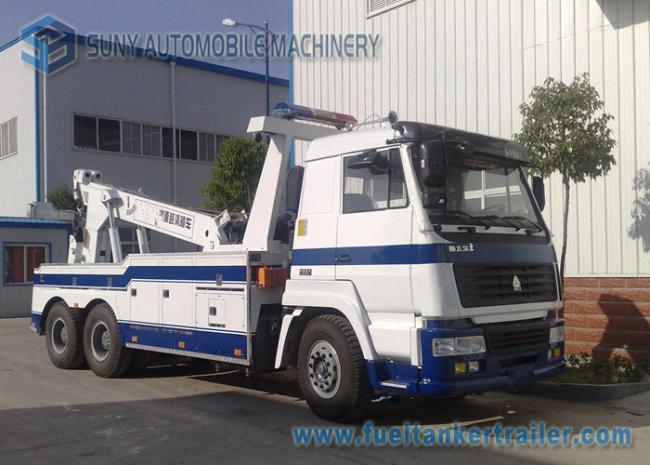

Styer King Heavy Wrecker Tow Truck Breakdown Truck With INT 35 Wrecker Body
Styer King Heavy Wrecker Trucks Breakdown Truck With INT 35 Wrecker Body
Description :
As with all Suny Tow Trucks , customization is the order of the day and we ' ll build your wrecker the way you want it . Don ' t hesitate to inquire , standard and customized wreckers are surprisingly inexpensive .
Our INT - 35 unit is an everyday heavy wrecker ideal for every job from a tractor trailer to recovery calls . This unit will spend little time in you yard as it will always be grabbing the lucrative calls . It has been designed from the ground up with the operator in mind for towing and recovery calls and to work with loads up to 35 ton ( 77 , 000 lbs ) .
Our INT - 35 is over - built to ensure durability and long - life ; this will protect your investment and keep you on the road longer and hauling more vehicles faster . Owners and fleet operators alike will quickly discover that this light duty wrecker is the best value that ' s available on the market today .
Specifications :
Styer King 10 Wheeler Heavy Duty Breakdown Truck With INT 35 Wrecker Body
| Summary | |||||
| wrecker refited from Sino ZZ1256M4646F chassis , the vehicle appearance is esthetic , durable in use , Tow and hang and connect with the body , the function is powerful , is the best style of removing obstacles on the road and garage . | |||||
| Basic Information | |||||
| Vehicle name | steyer double rear axle | Chassis | ZZ1256M4646F | ||
| Outline size ( L × W × H ) ( mm ) | 9480 × 2498 × 3270 |
Cargo inline size ( L × W × H ) ( mm ) |
/ | ||
| Rating mass ( kg ) | / | Empty mass ( Kg ) | 19150 | ||
| Full mass ( kg ) | 25000 | Emission standard | Euro 2 | ||
| Engine Information | |||||
| Model | WD615 . 67A | Type | / | ||
| Power / displacement ( KW / ML ) | 206 / 9726 | Manufacture | Wei Chai Power CO . LTD | ||
| Chassis Information | |||||
| Wheelbase ( mm ) | 4600 + 1350 | Axle load ( kg ) | / | ||
| Tire | 11 . 00 - 20 | Max speed ( km / h ) | 90 | ||
| Front overhang ( mm ) | 1958 | Rear overhang ( mm ) | 1830 | ||
| Front track ( mm ) | 1560 | Rear track ( mm ) | 1230 | ||
| Approach angel ( ° ) | 15 | Departure angle ( ° ) | 19 | ||
| Steering | / | Brake | / | ||
| Cabin | Blunt end all - metal upturning ( 6 × 4 ) | ||||
| Special function | |||||
| Rating load ( Kg ) | 5655 | Max load ( kg ) | 9600 | ||
| Bracket arm max Length ( mm ) | 1700 | Bracket arm companding Length ( mm ) | 3530 | ||
| Board Size ( L × W ) ( mm ) | / | Min slant angle ( ° ) | / | ||
| Board working stroke ( mm ) | 2850 | Max tow speed ( km / h ) | 40 | ||
| Winch NO . | 2 | Rating tow capacity ( kg ) | 10000 * 2 | ||
| Steel wire rope lenth ( m ) | 40 | Winch speed | 5 | ||
| UNDERLIFT SPECIFICATIONS | |
| Tow Rating | 36 . 2 ton ( 80 , 000 lbs ) |
| Retracted capacity on forks | 24 . 9 ton ( 55 , 000 lbs ) |
| Retracted distance to the forks | 1514 mm ( 60 " ) / 1701 mm ( 67 " ) |
| Extended capacity on forks | 7 . 2 ton ( 16 , 000 lbs ) |
| Extended distance to the forks | 2936 mm ( 116 " ) / 3657 mm ( 144 " ) |
| Tilt angles | - 6 ° |
| BOOM SPECIFICATIONS at 32 ° | |
| Retracted capacity | 35 ton ( 77 , 100 lbs ) |
| Extended capacity | 17 , 5 ton ( 38 , 500 lbs ) |
| Extended capacity | 32 ° |
| Maximum hook height | 5913 mm ( 233 " ) |
| Reach past tailboard | 3373 mm ( 133 " ) |
| WINCH SPECIFICATIONS | |
| Quantity | 2 winches |
| Pulling force ( on 1st layer ) | 20 ton ( 44 , 000 lbs ) |
| Winch Type | Planetary |
| Cable length | 19 mm x 60 m ( 3 / 4 " x 200 ' ) |
| CHASSIS REQUIREMENTS | |
| FA axle ( s ) weight ( min ) | 6 ton ( 13 , 200 lbs ) |
| RA axle(s) weight (min) | 2 x 9 ton ( 20 , 000 lbs ) |
| Recomended Tire size | R22 . 5 |
| Clear CA | 4114 mm ( 162 " ) |
| Recomended GVW | 24 ton ( 53 , 200 lbs ) |
Standard Features
- 4114 mm ( 162 " ) Cab to centre of tandem steel body
- Frame fork holders
- Frame fork racks
- Chain racks
- 4 sets of frame forks
- Chrome door handle
- Driver and passenger side manual controls
- Safety chains
Options :
- Wireless remote control
- 609 mm ( 24 " ) , 762 mm ( 30 " ) , 914 mm ( 36 " ) , 1219 mm ( 48 " ) , 1828 mm ( 72 " ) tunnel box
- Custom length tunnel box
- Extra frame forks
- Wheel lift receivers for single / double tires
- Full recovery tool package
- Custom storage system
- Aluminum / Composite body
- European body style
- Gravel guard undercoating finish
- Front push bumper
- XP , X - shape side puller
- Chrome hand rails
- A - arm style side winches
- In cab controls
- European style low under lift
- Full size LED light bar
- LED - working lights, strobe lights , lights inside toolbox
- Custom painting
- Installation services and extended warranty
- Tow operators education & training
